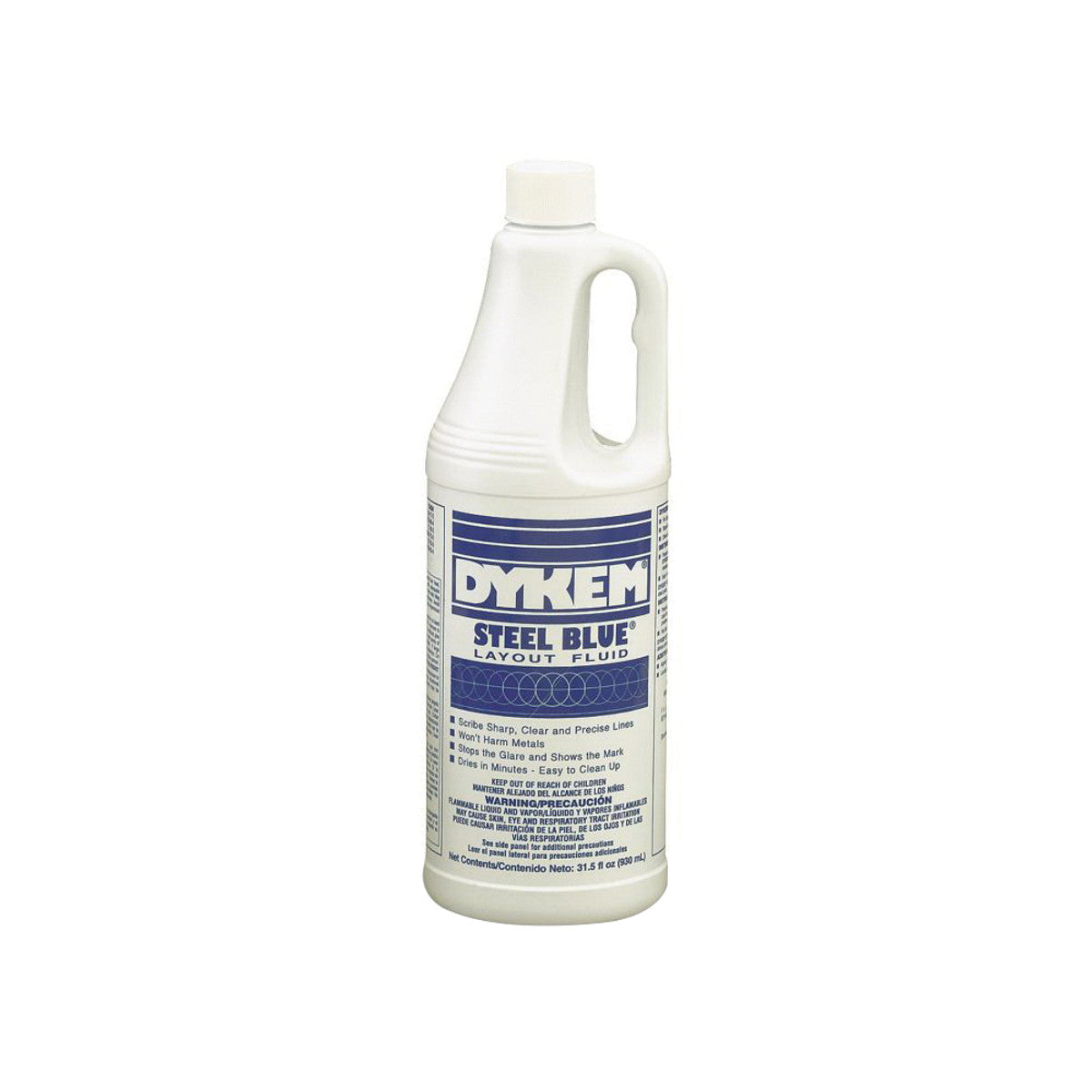

DYKEM 80600 Layout Fluid, STEEL BLUE, 930 mL Bottle, (Per Each)

Product Description

DYKEM® STEEL BLUE® Layout Fluid, 930 mL, Bottle, Liquid, Composition: Ethanol, n-Butyl Acetate, n-Butyl Alcohol, Diacetone Alcohol, Isopropyl Alcohol, n-Propyl Acetate, Basic Green 4, Steel Blue, Sweet, Solvent, 11.667 deg C Flash, Flammability: 1.4 (Lower) - 19(Upper)



APPLICATION

Tool and Die Makers, Maintenance Mechanics, Machinists and Pattern Makers on a Variety of Materials Including Metals, Aluminum and Glass



FEATURES

• Provides a uniform deep color that prevents glare and eye strain
• Allows for sharp, clear and precise scribes
• Provides a thin film without cracking or chipping and adds practically no thickness to work surface
• Dries within minutes
• Reveals defects and pinholes in a variety of surfaces
• Great for inspection of gear tooth contact patterns
• Do not contain any reportable amounts of Xylene



SPECIFICATIONS

Color:	Steel Blue
Composition:	Ethanol, n-Butyl Acetate, n-Butyl Alcohol, Diacetone Alcohol, Isopropyl Alcohol, n-Propyl Acetate, Basic Green 4
Container Size:	930 mL
Container Type:	Bottle
Flammability Rating:	1.4 (Lower) - 19(Upper)
Flash Point:	11.667 deg C
Form:	Liquid
Odor/Scent:	Sweet, Solvent



STANDARD APPROVALS

Meets A-A 59168 dated 21st May 2014 paragraph 3.1.1 thru 3.2.4.4 with the exception of 3.3(chemical resistance to chlorinated solvents)
