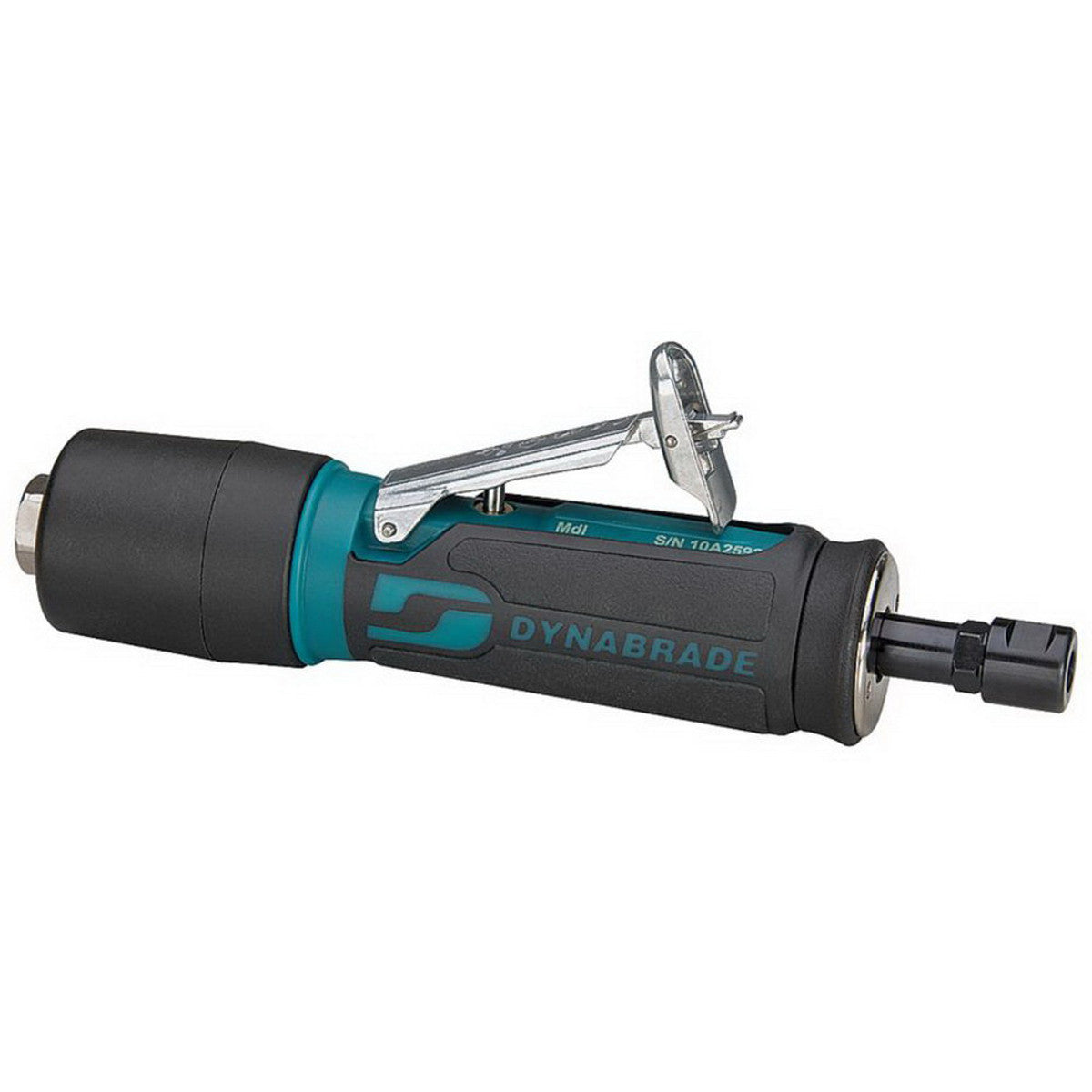

Dynabrade 48201 Air Straight-Line Die Grinder, 1/4" Collet

Product Description

Dynabrade® Die Grinder, Gearless, 1/4 in Collet, 25000 rpm, 0.4 hp, 23 scfm, 90 psi Air, 1/4 in NPT Air Inlet, Rear Exhaust Location, Lever Throttle, 1/4 in ID Minimum Hose Size, Composite Housing, Straight Line Handle, 76 dBA, 8 in L x 1.7 in H



APPLICATION

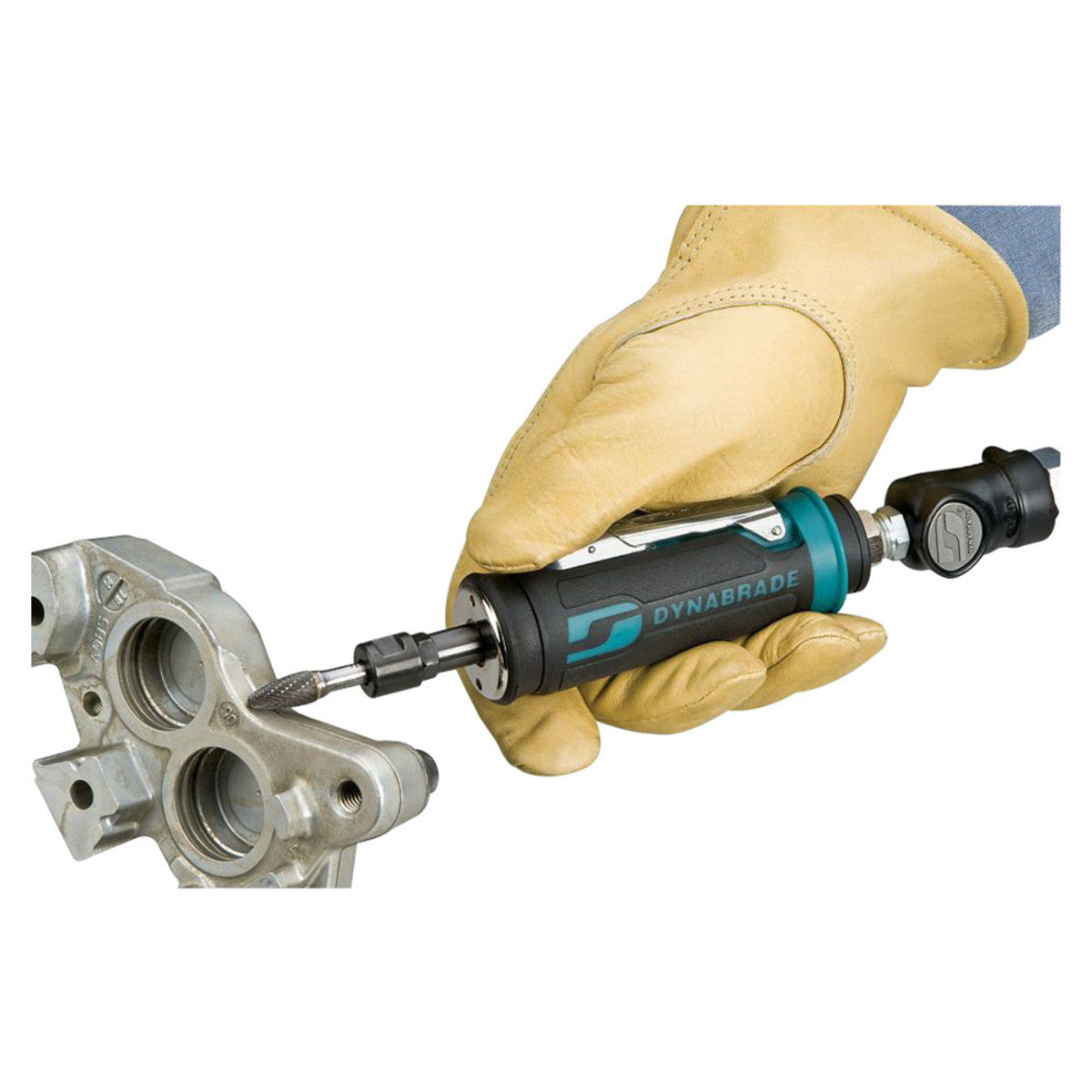

Deburring, Finishing, Polishing and Rapid Material Removal



FEATURES

• Perfect for use on metal, fiberglass, carbon fiber, composites and more
• 0.4 hp (298 W) die grinders are designed for peak efficiency and longer life
• Integrated safety lock throttle lever has a contoured shape for operator comfort, with new dowel pin that minimizes lever wear
• Increased tool life due to unique pre-filter that provides extra defense against contaminants in air stream
• Color coded for easy identification, ergonomic oval-shaped tool housing conforms to natural shape of hand for optimum comfort
• Lightweight, tool design each model weighs 0.5 oz (15 g) less than its previous version
• 3-vane rotor allows wider offering of tool speeds, achieves stall-torque and horsepower performance equal to tools with 4-vane rotor
• Innovative air flow channel exhaust air moves through channel between composite housing and housing core, maintaining comfortable temperature of tool housing
• Hardened tool cylinder is made of case-hardened material to retain core toughness and prevent cracking
• Full length housing core runs the full length of tool, serving as backbone and providing consistent weight distribution of tool



SPECIFICATIONS

Air Flow:	23 scfm
Air Inlet:	1/4 in NPT
Air Pressure:	90 psi
Collet Capacity:	1/4 in
Dimensions:	8 in L x 1.7 in H
Exhaust Location:	Rear
Handle Style:	Straight Line
Horsepower:	0.4 hp
Housing Material:	Composite
Minimum Hose Size:	1/4 in ID
Sound Level:	76 dBA
Speed:	25000 rpm
Throttle Style:	Lever
Type:	Gearless
