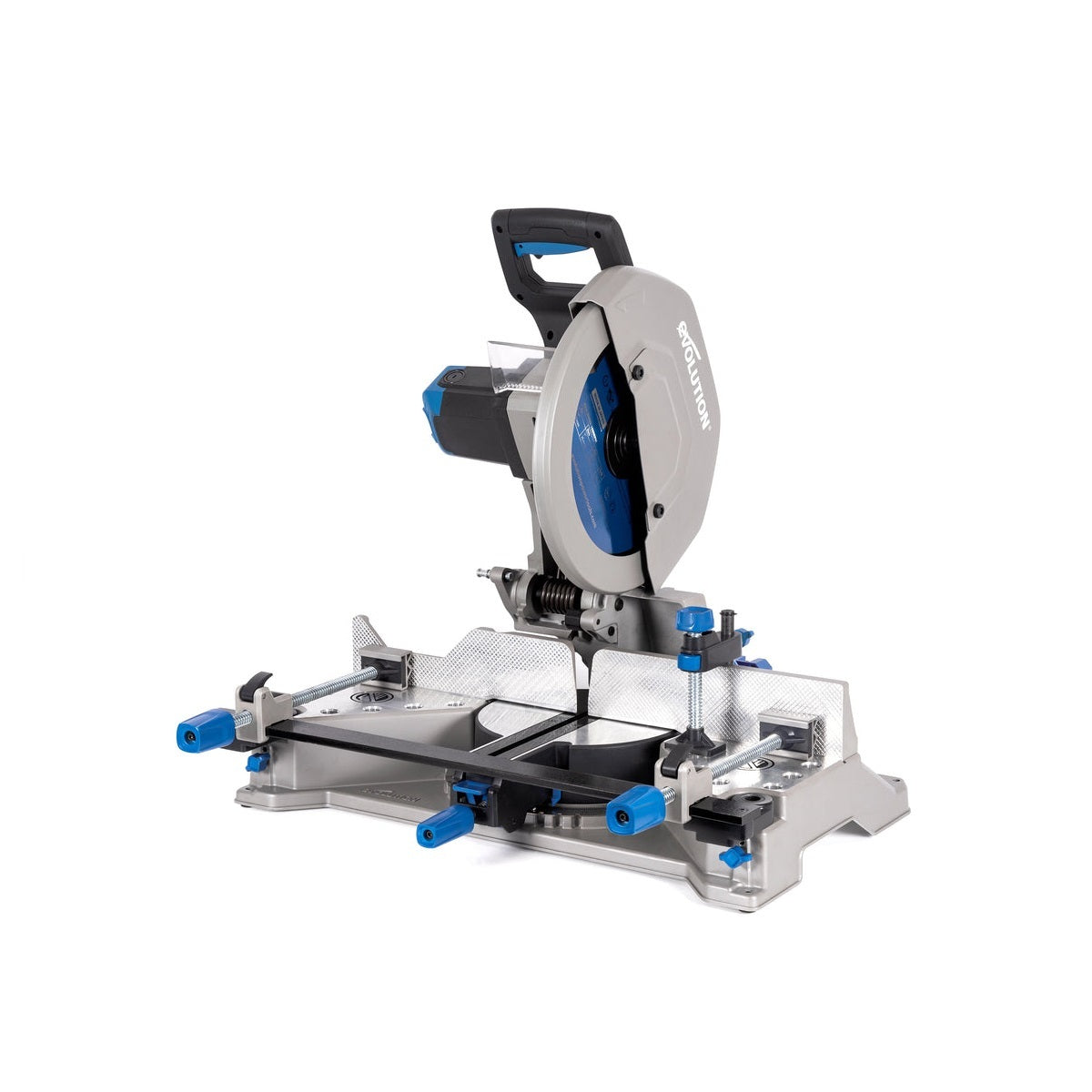

Evolution® Power Tools S355MCS Mitering Chop Saw For Heavy Duty Metal Cutting With 46° Max Bevel

Evolution® Power Tools S355MCS Mitering Chop Saw For Heavy Duty Metal Cutting With 46° Max Bevel

$1,132.00 USD
$1,132.00 USD
Sale Sold out
Shipping calculated at checkout.

Item Details

  • Built for professionals, the S355MCS Mitering Chop Saw from Evolution is the first 14" TCT industrial chop saw that allows you to produce accurate miter cuts without having to reposition the workpiece. It is designed to tackle heavy cuts in oversized metal pieces and features a precision adjustable miter table, 3-position saw head, and unique heigh adjustable front clamp rail assembly. It delivers precise and quick angle adjustment for easy set-up and a powerful clamping mechanism to ensure quality, repeatable cuts every time. It features a powerful 15 A motor, easy ambidextrous controls and a Bench Dog compatible base plate with a tough knurled back fence.

Features

  • Innovative dual sliding front clamps with quick-release clasps.
  • Chop Saw Safety: Clamp materials closer to blade and have full confidence they will remain in place. This will also lead to longer blade life and high quality cuts.
  • Quick-Release Top Clamp: Top clamp positioned to the right/left of the blade that secures the workpiece after cutting it. 3x V-Block adapters included.
  • Height Adjustment Clamp Rail: Gives forwards, backwards, up, down, left and right movement. Features quick-release ACME threads.
  • Chip Deflector
  • Knurled Fence: Securely grips the workpiece.
  • Holes in base to fit bench dogs.
  • 46°-46° Mitering Base: Stainless Miter Gauge with positive stops at 0°, 15°, 22.5°, 30°, and 45°.

Specifications

  • Motor (120V 60Hz): 15 A
  • Speed No Load: 1450 rpm
  • Max. Bevel (Left): +/- 46°
  • Cable Length: 10 ft.
  • Blade Dia: 14 in.
  • No. of Teeth: 66
  • Bore: 1 in.
  • Kerf: 0.94 in.
  • Product Weight: 77 lb.
  • Packaged Weight: 88 lb.
  • Mild Steel Plate (Max Thickness): 1/2 in.
  • Stainless Steel Plate (Max Thickness): 13/64 in.
  • Square Tube at 90° (Mild Steel): 4-3/4 x 4-3/4 in.
  • Square Tube at 45° ML: 4 x 4 in.
  • Square Tube at 45° MR: 1-3/4 x 1-3/4 in.
  • Rectangle Tube at 90°: 6-1/2 x 4 in.
  • Rectangle Tube at 45°: 4-1/2 x 1-3/4 in.
  • Round Tube at 90°: Ø 4-3/4 in.
  • Round Tube at 45° (Mild Steel): Ø 4 in.
  • Minimum Cut Off Piece Length: 5/16 in.

Includes

  • Instruction Manual
  • 66 Tooth Mild Steel TCT Blade
  • Double Ended 5mm/8mm Hex Key
  • Cutting Head Assembly
  • Base Table Assembly
  • Rear Stabilising Leg
  • QR Top Clamp
  • Rail Bracket and Fixings
  • V-Blocks x3
  • QR Front Clamps x 2

Product Attributes

Saw Type

» Metal Cutting Saw

Speed

» 1450 RPM

Arbor

» 1"

Cutting Capacity

» 1/2"

Size Description

» 28.25" L x 26" W x 27.5" H
» Blade Dia: 14 in. |

Rating

» 15 A
