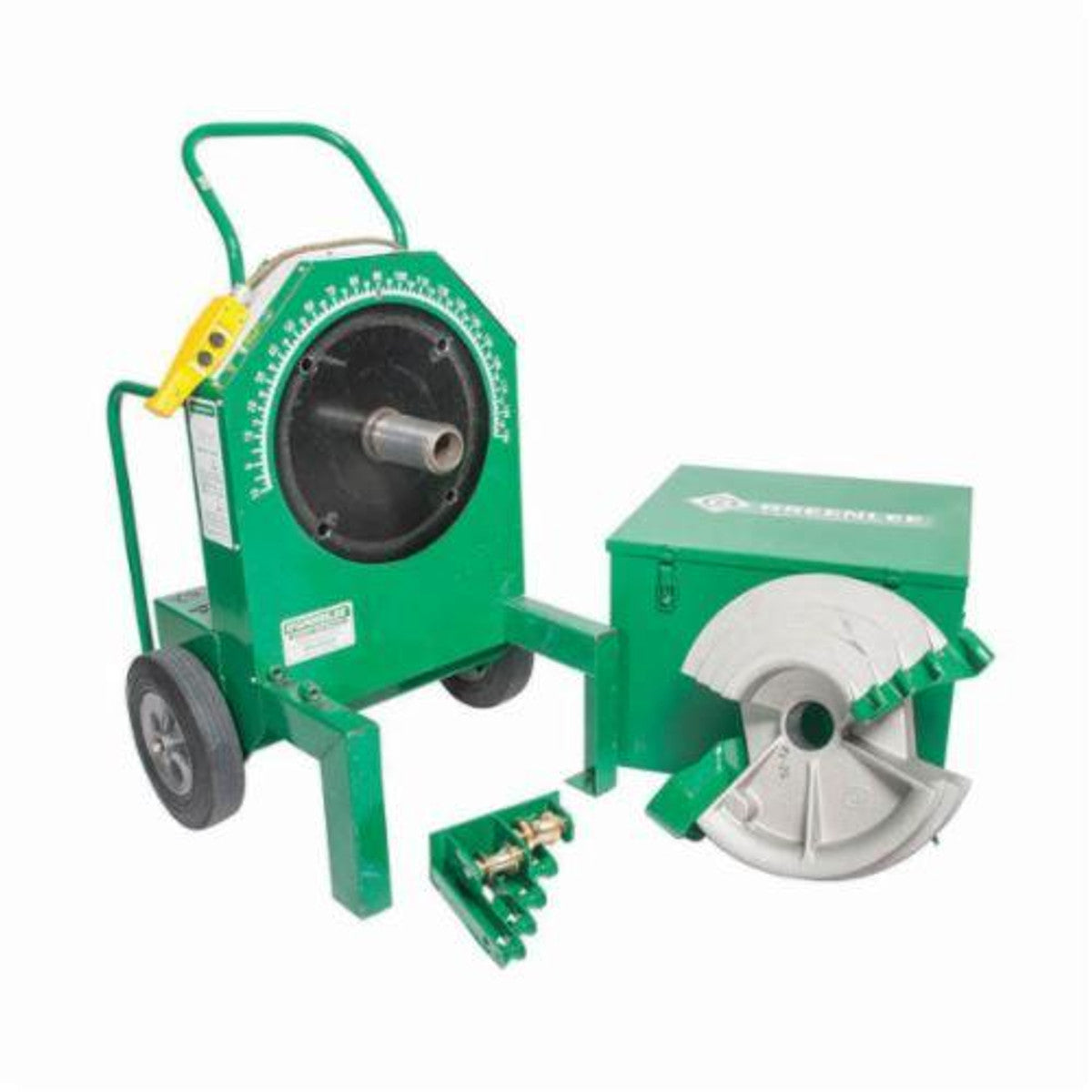

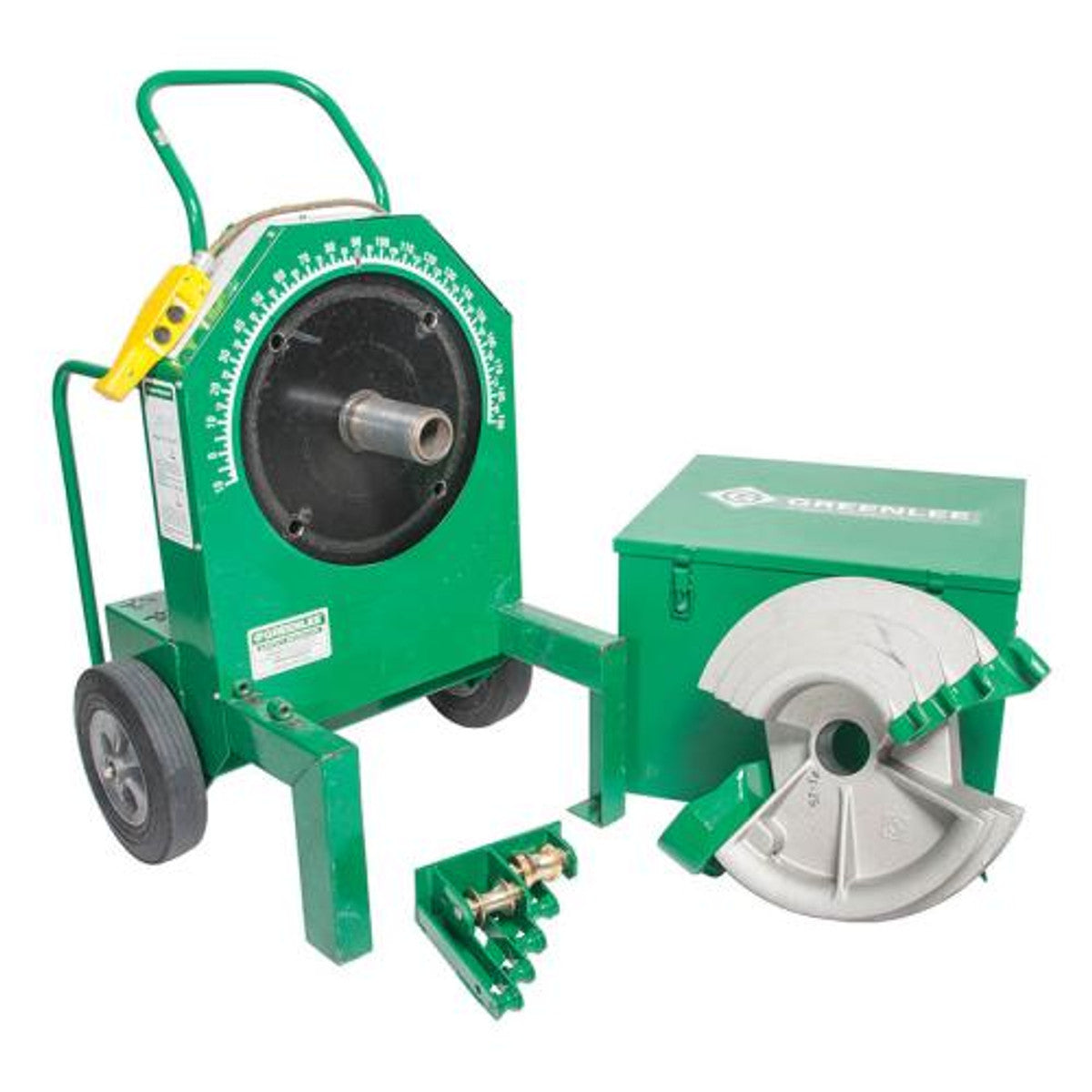

Greenlee 555RSC GFCI Protected Receptacle Electric Classic Bender, 1/2 to 2 in Capacity, 120 VAC, PVC Coated Housing

Product Description

Greenlee® Electric Classic Bender, GFCI Protected Receptacle, Series: 555, 1/2 to 2 in, 1/2 to 9 in Bend Radius, 120 VAC, 20 A, -5 to 120 deg F, PVC Coated Housing, 44 in H x 28-1/2 in W x 28-1/2 in D

From rugged hand benders to the full-featured smart quad Bender™ which calculates complete layout measurements, greenlee benders are the industry standard for bending EMT, IMC, PVC and rigid conduit. refer to our easy-to-use selection guide for choosing a greenlee bender or accessory that will get the job done right the first time.



FEATURES

• 1/2 - 2 in rigid shoe group
• Rigid conduit
• The 555C classic series features simple relay controls for easy field repairs, and compact handle design to prevent interference with conduit when bending
• Shoe groups available for different combination
• IMC, EMT & pvc coated rigid
• 1/2 - 4-1/4 in, 3/4 - 5-7/16 in, 1 - 6-15/16 in, 1-1/4 - 8-3/4 in, 1-1/2 - 8-1/4 in, 2 - 9 in bend radius



SPECIFICATIONS

Type:	GFCI Protected Receptacle
Series:	555
Capacity:	1/2 to 2
Bend Radius:	1/2 to 9
Voltage Rating:	120
Amperage Rating:	20
Temperature Rating:	-5 to 120
Housing Material:	PVC Coated
Dimensions:	44 in H x 28-1/2 in W x 28-1/2 in D



STANDARD APPROVALS

cULus Listed, RoHS Compliant
