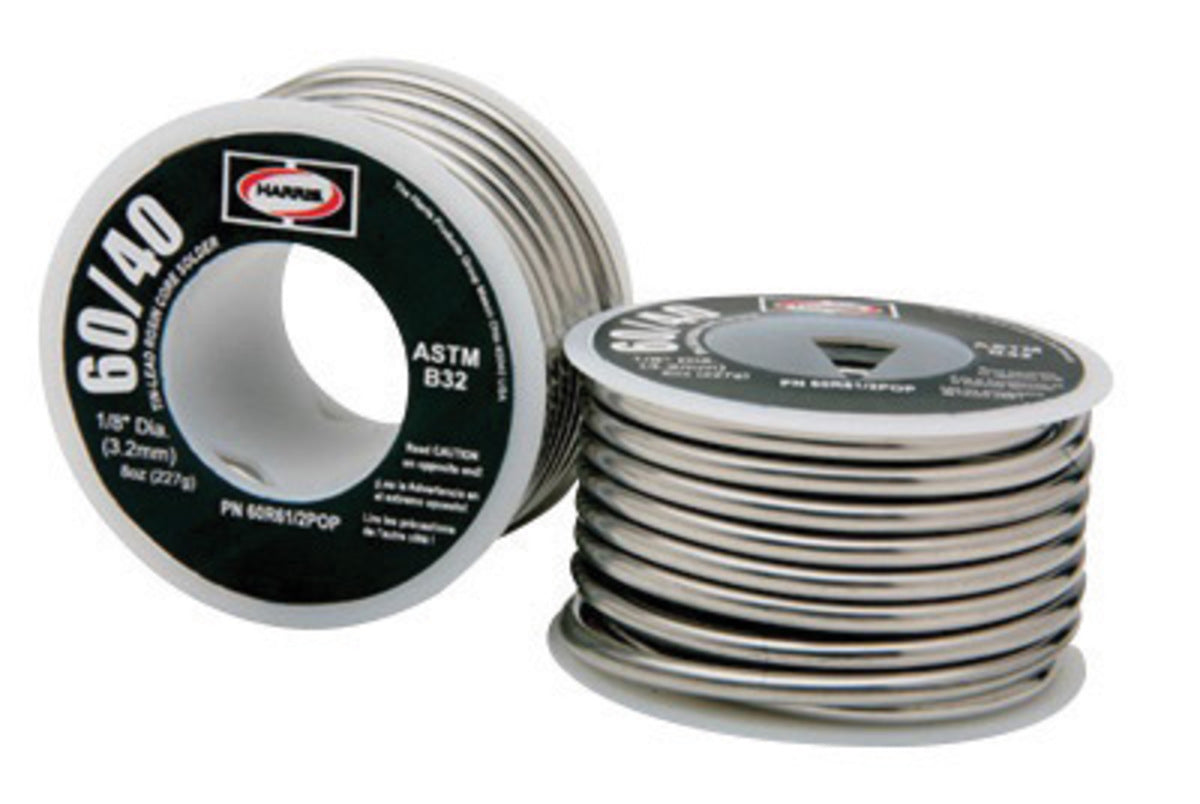

Harris® Solid Cored 60% Tin 40% Lead Solder 1# Bar

Harris® Solid Cored 60% Tin 40% Lead Solder 1# Bar

$47.73 USD
$47.73 USD
Sale Sold out
Shipping calculated at checkout.

Item Details

  • Harris® 60/40 Bar Solder comes in 1 lb bar and is ideal to join copper and most copper alloys, lead, nickel alloys as well as steel. Tin-lead solder flows faster due to narrow melting range. It is designed for wave soldering of conventional and surface mount circuit board assemblies.

Features

  • With some exceptions, these tin-lead solders can be used to join copper and most copper alloys, lead, nickel alloys and steel
  • Tin-lead solders are not recommended for joints subject to high stress or vibration in the cooling industry due to lack of sufficient elongation properties
  • These solders are also available with rosin or acid core
  • Similar to 50/50 but flows faster due to narrow melting range

Specifications

ASTM B32 Alloy Grade Sn 60

Applications

  • These tin/lead solders can be used, with some exceptions, to join copper and most copper alloys, lead, nickel alloys and steel
  • Tin/lead solders are not recommended for joints subject to high stress or vibration in the cooling industry due to lack of sufficient elongation properties
  • These solders are also available with rosin or acid core
  • Useful in general purpose soldering, radiators, electrical components

Caution

  • Lead-bearing solders are not to be used in potable water systems
  • Before use, read and understand the manufacturer's instructions, Material Safety Data Sheets (MSDS), and your employer's safety practices
  • Keep your head out of fumes
  • Use enough ventilation, exhaust at the arc, or both, to keep fumes and gases from your breathing zone and the general area
  • Wear correct eye, ear, and body protection
  • Do not touch live electrical parts

Product Attributes

Solder Type

» Solid Cored

Flux Type

» Solid Cored

Weight

» 1 lb

Alloy Material

» 40% Lead
» 60% Tin

Package

» Bar

Tin/Lead Alloy

» 40% Lead

» Show more details and specs
