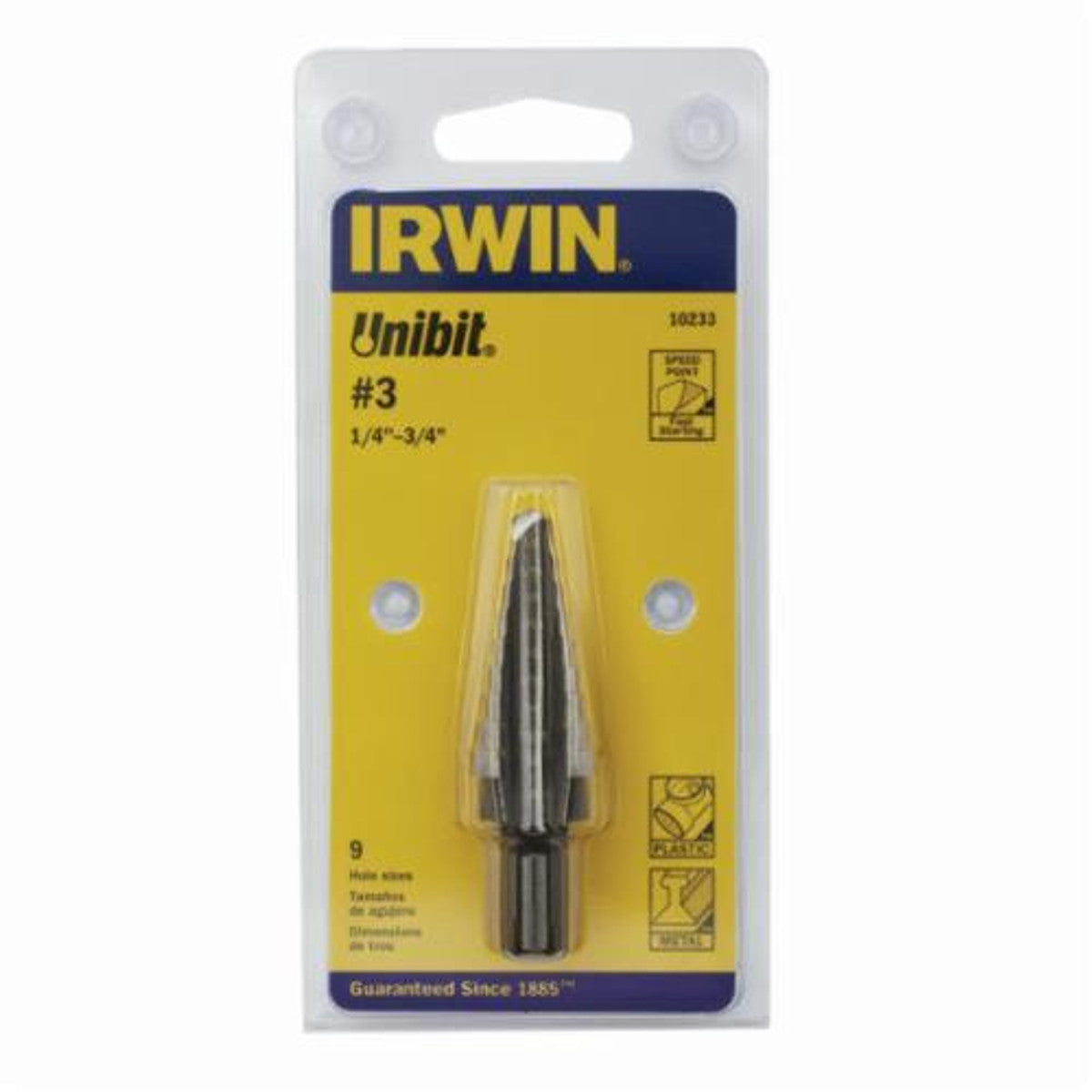

Irwin® 10233 Unibit Fractional Self-Starting Step Drill, #3, 1/4 in Dia Min Hole, 3/4 in Dia Max Hole, 9 Steps

Product Description

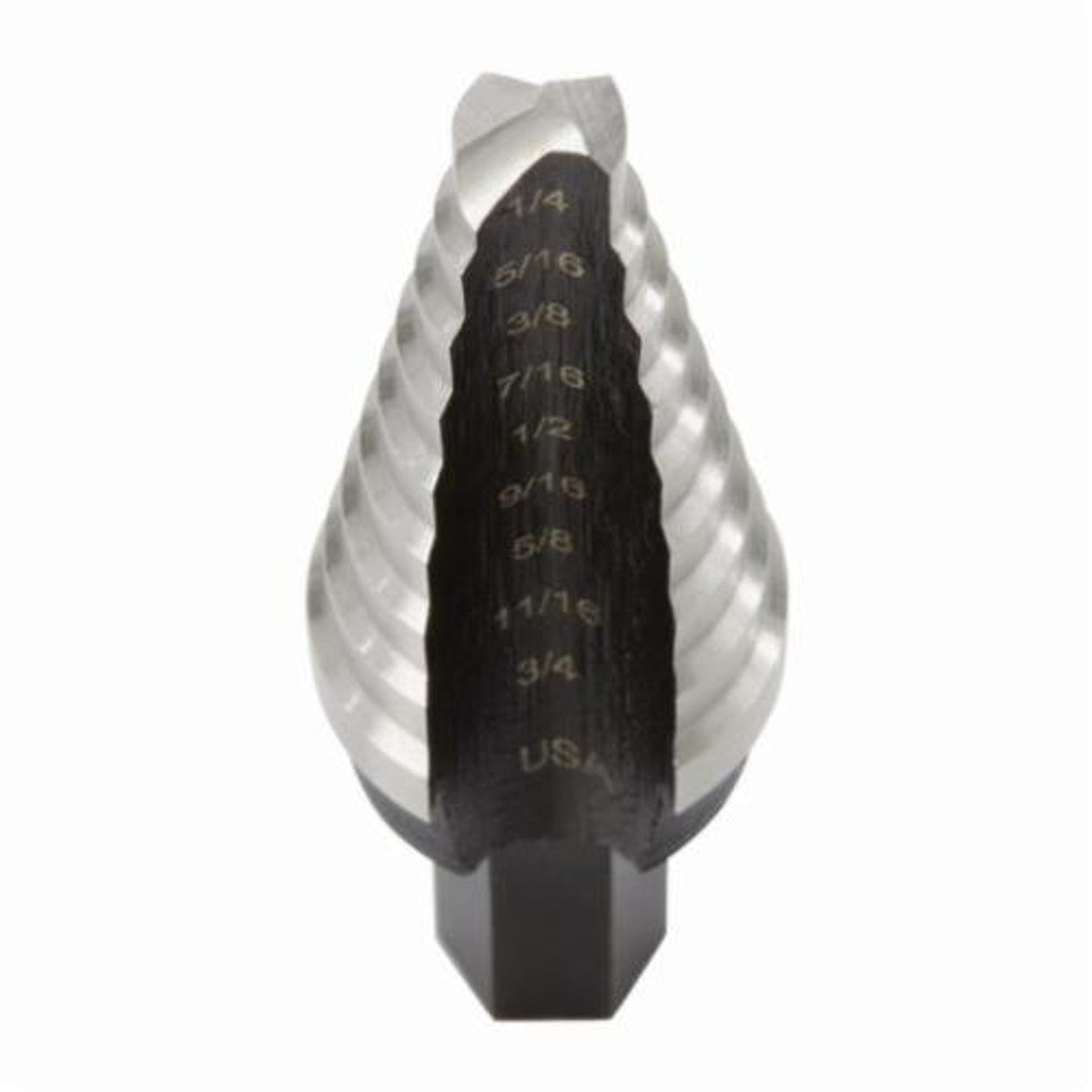

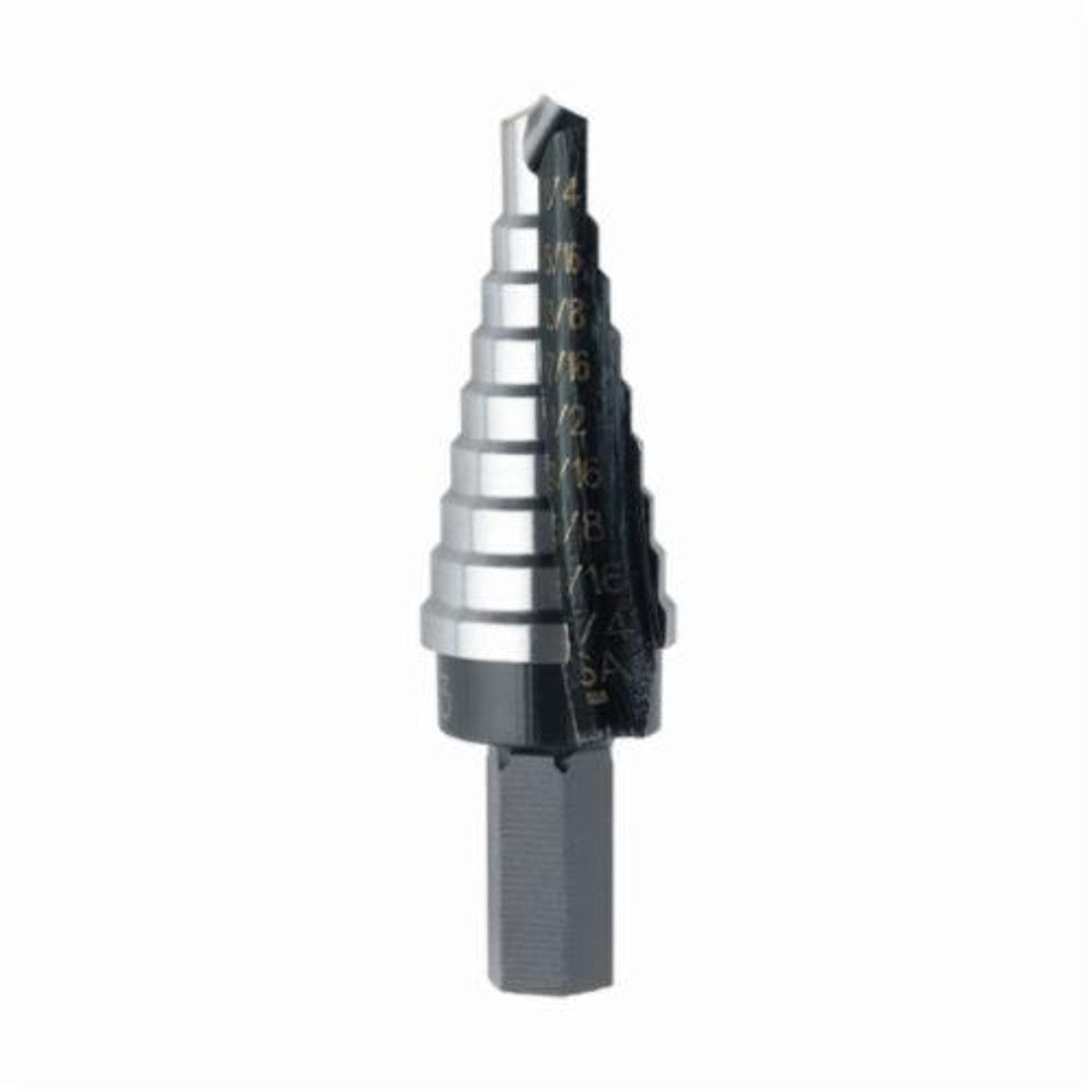

Irwin® Unibit® Step Drill, Fractional Self-Starting, #3, 1/4 in Minimum Hole Dia, 3/4 in Maximum Hole Dia, 9 Steps, 1/16 in Step Depth, 9 Hole Sizes, 1 Flutes, 3/8 in Shank, Hex Shank, SpeedPoint® Point, M35 HS-Co Cutting Edge, M35 Cobalt HSS, Bright



APPLICATION

For drilling holes into thin materials



FEATURES

• Single flute cutting edge for greater control through steps
• Hex shank prevents slipping in drill chuck
• New SpeedPoint tip penetrates faster than previous Unibits and prevents walking
• General purpose
• Cobalt is harder than high speed steel and provides better wear resistance, commonly used on high tensile alloys
• Bright provides a smooth, polished finish on the tool, increases chip flow in softer materials such as aluminum, wood and plastic



SPECIFICATIONS

Type:	Fractional Self-Starting
Letter/Wire Size:	#3
Minimum Hole Diameter:	1/4 in
Maximum Hole Diameter:	3/4 in
Number of Steps:	9
Step Depth:	1/16 in
Number of Hole Sizes:	9
Number of Flutes:	1
Shank Size:	3/8 in
Shank Type:	Hex
Point Type:	SpeedPoint®
Cutting Edge Material:	M35 HS-Co
Material:	M35 Cobalt HSS
Finish:	Bright
Applicable Materials:	Stainless Steel, Copper, Brass, Aluminum, Plastic and Laminates
