Jacobs 30215 11N Super, 0.04 to 0.375 in, #2 JT Mount, Ball Bearing, K32 Key Number

Product Description

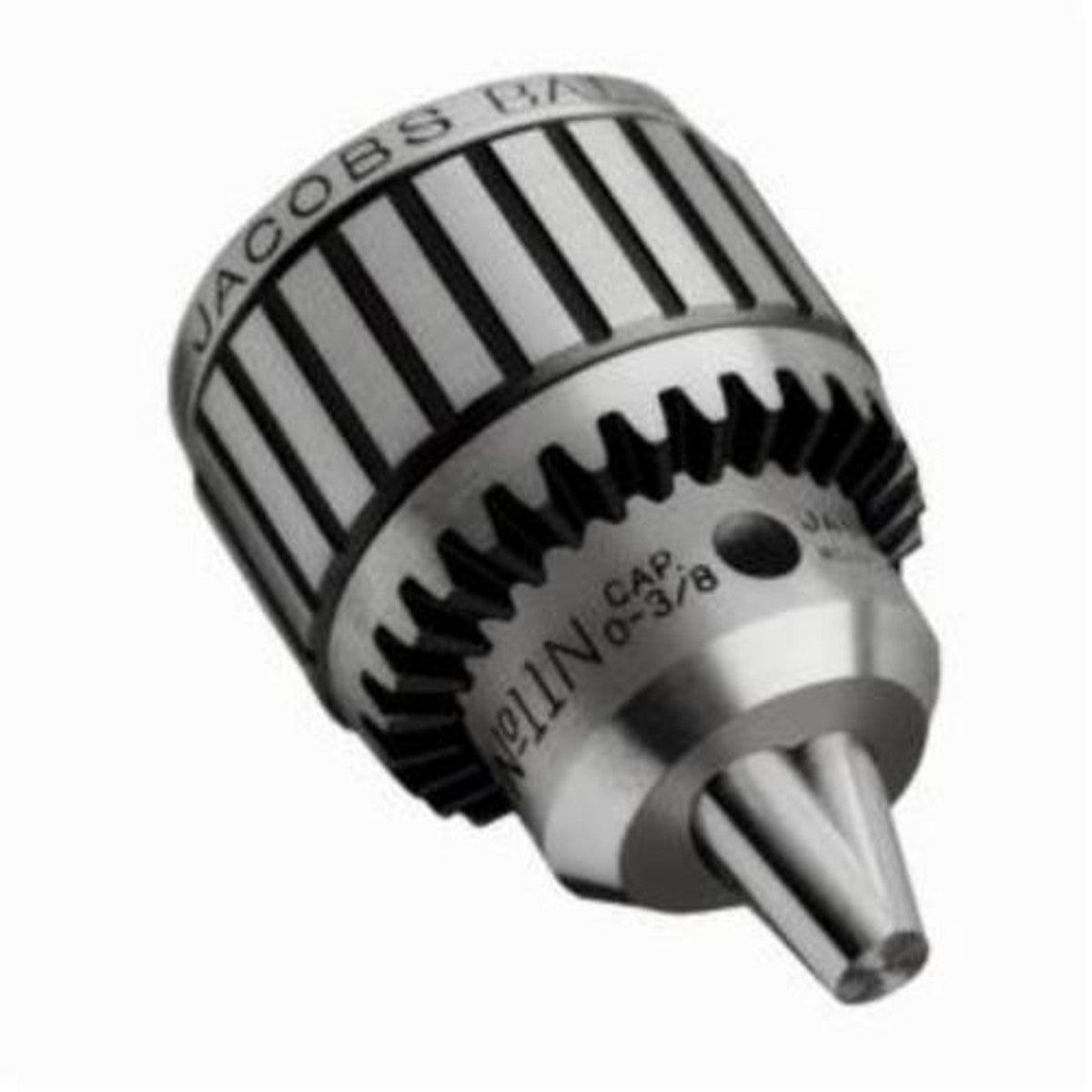

Jacobs® Drill Chuck, Super, Series: 11N, 0.04 to 0.375 in, Key Number: K32, Ball Bearing, 2.88 in Closed Length, 2.26 in Open Length, #2 JT Mount, 1.93 in Outside Dia



PACKAGE DESCRIPTION

Package Quantity: 1/BX



APPLICATION

For industrial applications



FEATURES

• Jaws center ground for absolute straightness and alignment
• Through hardened sleeve teeth, plus hardened nose and keyholes provide outstanding wear resistance
• Steel chuck
• Each chuck 100% inspected for performance and precision
• One-piece sleeve eliminates crack between driving teeth often found in other designs
• Fluted sleeve standard
• T.I.R. 0.003 in maximum at half capacity
• Designed to work with a wide range of production drilling equipment, jig borers, milling machines, lathes and radials, this chuck is engineered for heavy duty, close tolerance production drilling
• Ball bearing construction maximizes gripping force and drilling accuracy
• Ball thrust bearings reduce friction and increase grip torque and overall performance
• The chuck jaws are center ground for absolute straightness and alignment



SPECIFICATIONS

Type:	Super
Series:	11N
Capacity:	0.04 to 0.375
Key Number:	K32
Bearing Type:	Ball
Closed Length:	2.88
Open Length:	2.26
Mounting Type:	#2 JT
Outside Diameter:	1.93
