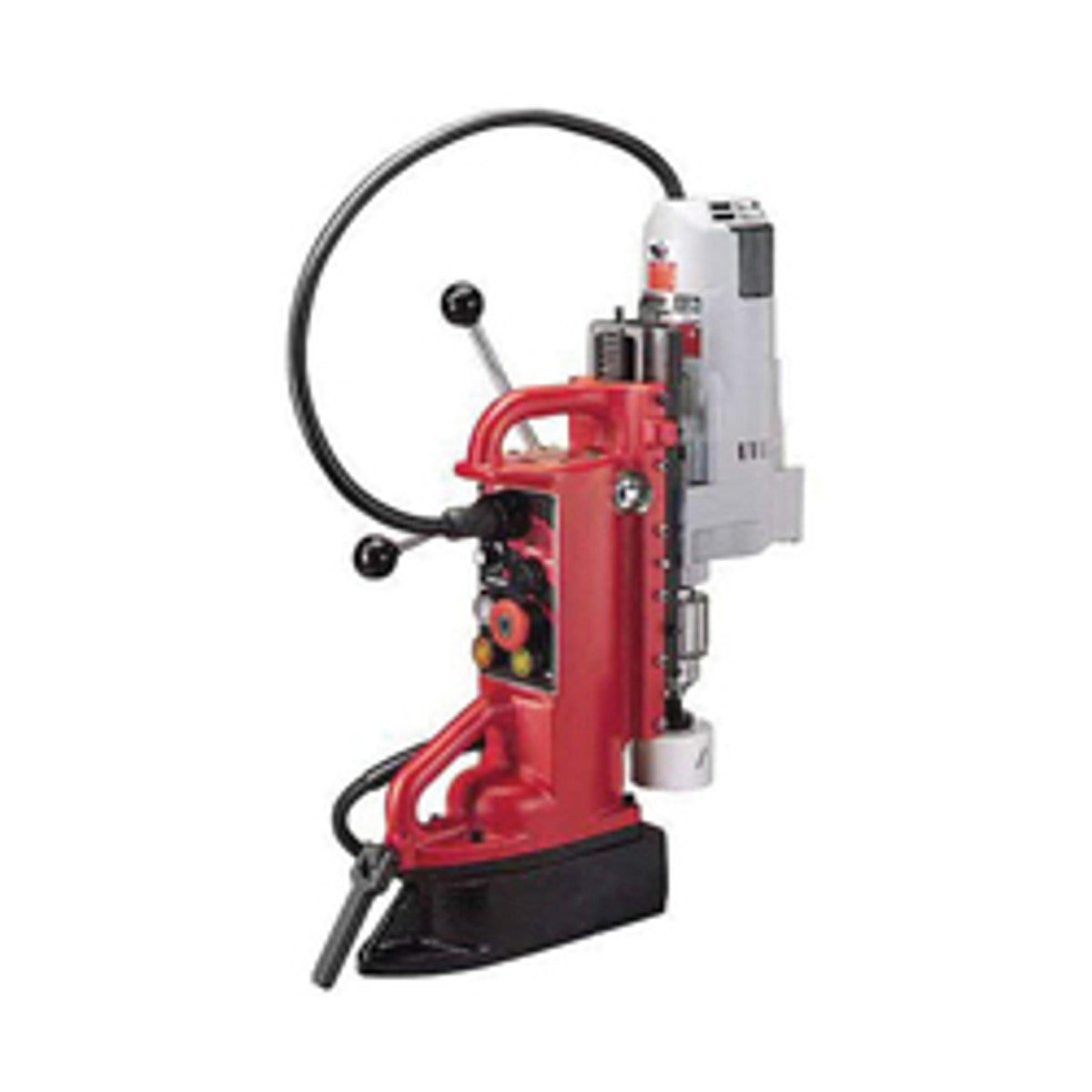

Milwaukee 4206-1 Electro-Magnetic Adjustable Position Drill Press with 3/4" Motor

Product Description

Milwaukee Electromagnetic Drill Press, Adjustable Position Heavy Duty, 3/4 in Chuck, 11 in Spindle Travel, 350 rpm Spindle Speed, 1 Spindle Speed, 1630/1670 lb Drill Point Pressure, 4-11/16 in Drill to Center From Base, 25-1/4 in Overall Height, 2 hp, 120 VAC, 12.5 A

No job is too large for this heavy-duty drill press. The Adjustable-Position Electromagnetic Drill Press with 3/4 in Motor features the 4203 adjustable-position, variable-speed base and the 4262-1 3/4 in drill motor with 3-Jaw chuck. Built for production drilling, this 11.5-amp drill press can handle the toughest drilling jobs with up to a 3/4 in Twist Drill hole capacity, 4 in hole capacity with Steel Hawg® Cutters and 1-14 tapping capacity. The motor runs at 350 no-load RPM, geared low for maximum torque; base control panel offers variable speed control of motor RPM. . It can produce up to 1670 pounds of drill point pressure with a 1 in steel plate. Feedback speed control helps you maintain speed during operation. This unit features a 3/4 in chuck for fast and easy bit changes while eliminating slippage and breakage. The dual-mount gear case with reverse mount permits tight quarter drilling.



PACKAGE DESCRIPTION

Package Quantity: 1/PK



WHAT'S INCLUDED

(1) 4203 Electromagnetic Drill Press Base, (1) 4262-1 3/4 in Motor and (1) 6 ft Safety Chain



FEATURES

• Powerful 11.5 A motor, engineered for the toughest applications
• Dual mount gear case with reverse mount permits tight quarter drilling
• 3/4 in tap capacity, taps up to 1 in, 14 threaded holes
• Maximum force, develops up to 1670 lb of drill point pressure with a 1 in steel plate
• Solid state electronic switching, offers faster, smoother and quieter switching for a longer product lifespan
• Line lockout, prevents tool from operating if voltage is restored to an interrupted line
• Forward/reverse electronic feedback speed control, soft start and 6 ft safety chain
• 9 ft fixed cord
• Red/grey/black finish
• Computer controlled reverse
• Motor magnet lockout prevents de-mag during operation
• Full wave holding power
• Metal arm
• Grounded construction
• 4.74 in drilling depth
• 15 in L x 4-1/4 in W base



SPECIFICATIONS

Type:	Adjustable Position Heavy Duty
Chuck Size:	3/4 in
Spindle Travel:	11 in
Spindle Speed:	350 rpm
Number of Spindle Speeds:	1
Drill Point Pressure:	1630/1670 lb
Drill to Center From Base:	4-11/16 in
Overall Height:	25-1/4 in
Horsepower:	2 hp
Voltage Rating:	120 VAC
Amperage Rating:	12.5 A
