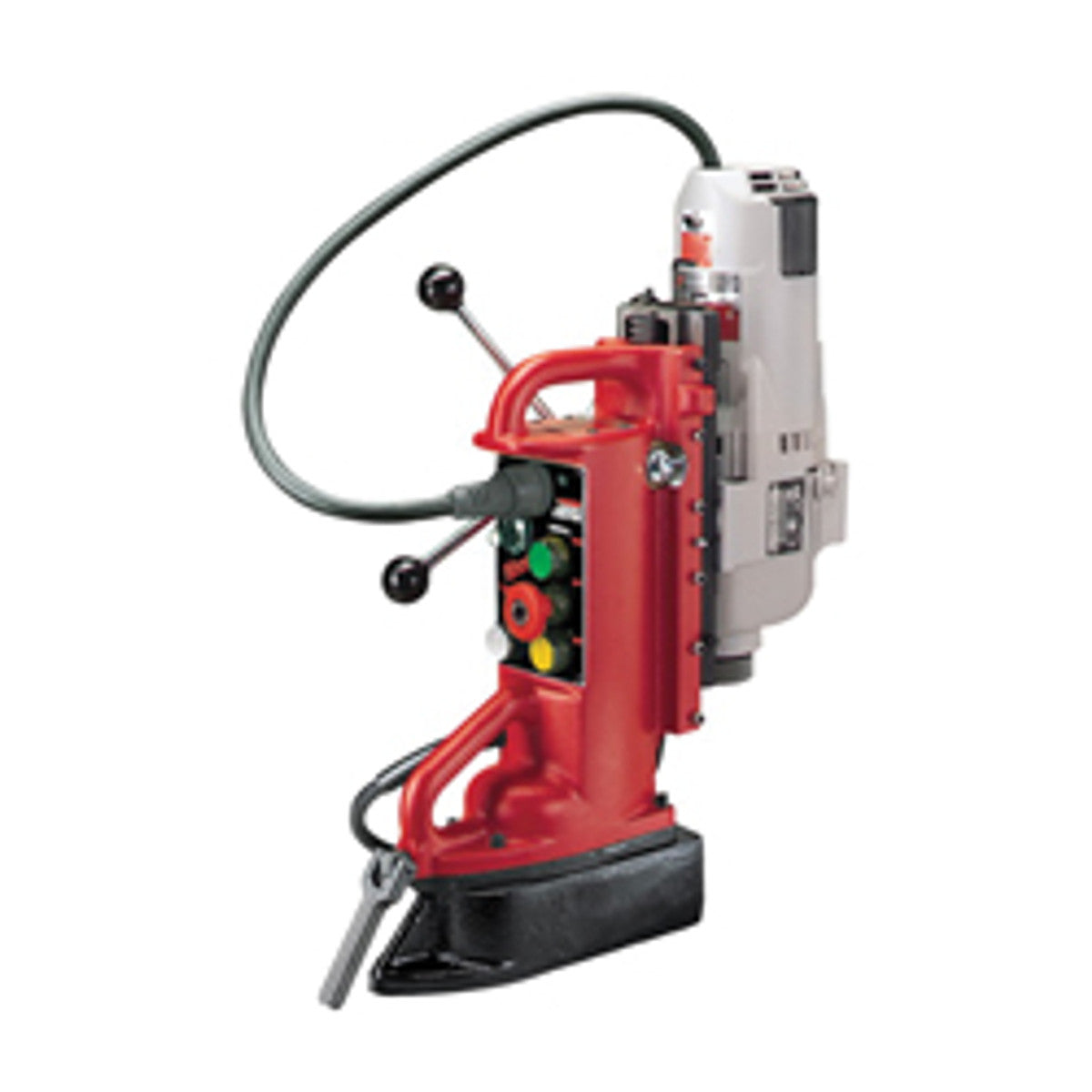

Milwaukee 4208-1 Electro-Magnetic Adjustable Position Drill Press with No. 3 Morse Motor

Product Description

Milwaukee Electromagnetic Drill Press, Adjustable Position Heavy Duty, 1-1/4 in Chuck, NO 3 Morse Spindle Taper, 11 in Spindle Travel, 250/500 rpm Spindle Speed, 1 Spindle Speed, 1530/1600 lb Drill Point Pressure, 4-3/8 in Drill to Center From Base, 25-1/4 in Overall Height, 2 hp, 120 VAC, 12.5 A

No job is too large for this heavy-duty drill press. This unit features the 4203 adjustable-position, variable-speed base and the 4297-1 1-1/4 in drill motor. Built for production drilling, this 11.5-amp drill can handle the toughest drilling jobs with up to a 1-1/4 in threaded hole capacity. The two-speed motor runs at 250 and 500 rpm, geared low for maximum torque. It can produce up to 1600 pounds of drill point pressure with a 1 in steel plate. Feedback speed control helps you maintain speed during operation. This unit features a No. 3 Morse Taper Chuck, for fast and easy bit changes while eliminating slippage and breakage. The dual-mount gear case with reverse mount permits tight quarter drilling.



PACKAGE DESCRIPTION

Package Quantity: 1/PK



WHAT'S INCLUDED

(1) 4203 Electromagnetic Drill Press Base and (1) 4297-1 NO 3 MT Motor



FEATURES

• Powerful 11.5 A motor, engineered for the toughest applications
• Dual mount gear case with reverse mount permits tight quarter drilling
• 1-1/4 in tap capacity, taps up to 1 in, 14 threaded holes
• Maximum force, develops up to 1600 lb of drill point pressure with a 1 in steel plate
• Solid state electronic switching, offers faster, smoother and quieter switching for a longer product lifespan
• Line lockout, prevents tool from operating if voltage is restored to an interrupted line
• Forward/reverse electronic feedback speed control, soft start and 6 ft safety chain
• 9 ft fixed cord
• Red/grey/black finish
• Computer controlled reverse
• Motor magnet lockout prevents de-mag during operation
• Full wave holding power
• Metal base
• Grounded construction
• 11 in L x 4-1/4 in W base



SPECIFICATIONS

Type:	Adjustable Position Heavy Duty
Chuck Size:	1-1/4 in
Spindle Taper:	NO 3 Morse
Spindle Travel:	11 in
Spindle Speed:	250/500 rpm
Number of Spindle Speeds:	1
Drill Point Pressure:	1530/1600 lb
Drill to Center From Base:	4-3/8 in
Overall Height:	25-1/4 in
Horsepower:	2 hp
Voltage Rating:	120 VAC
Amperage Rating:	12.5 A
