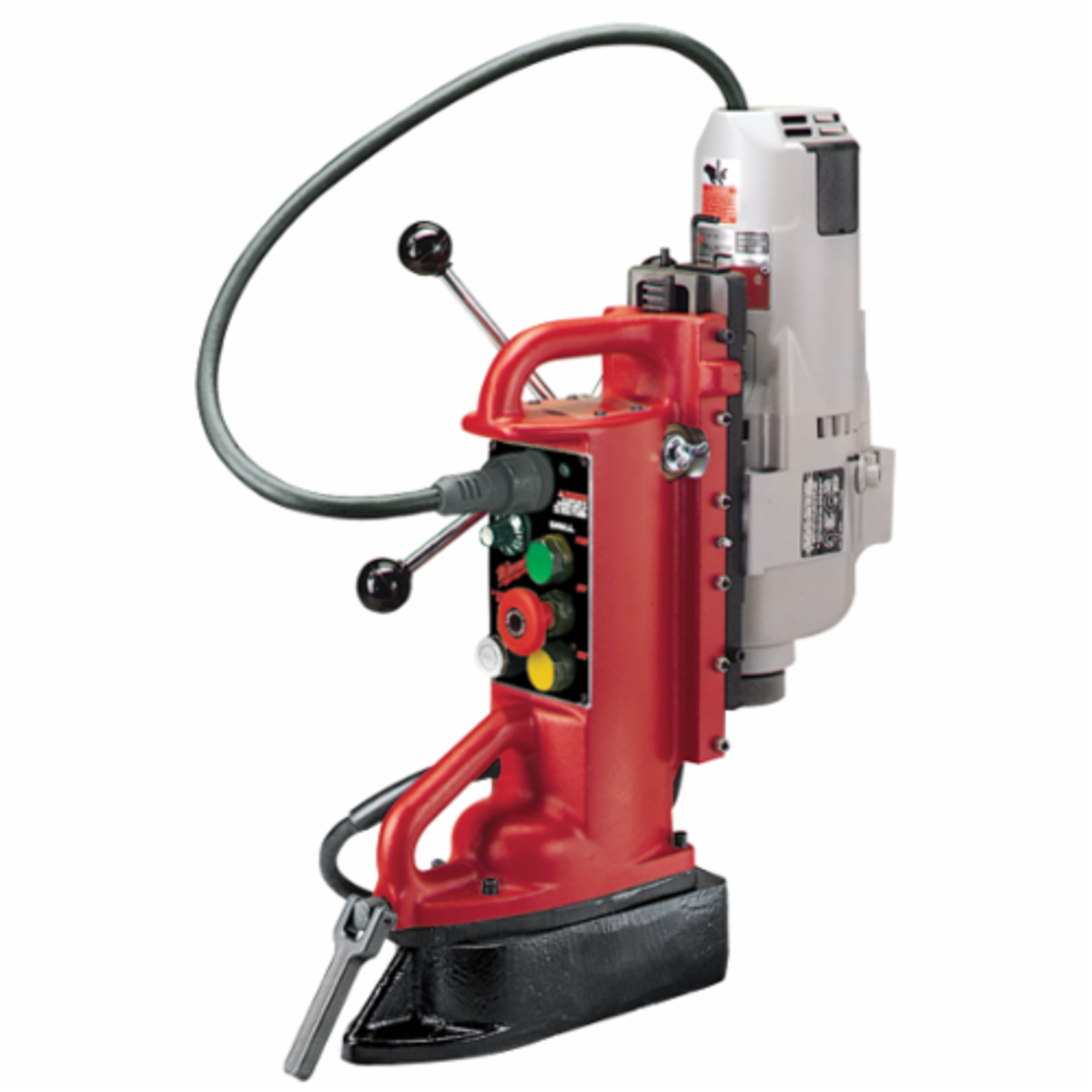

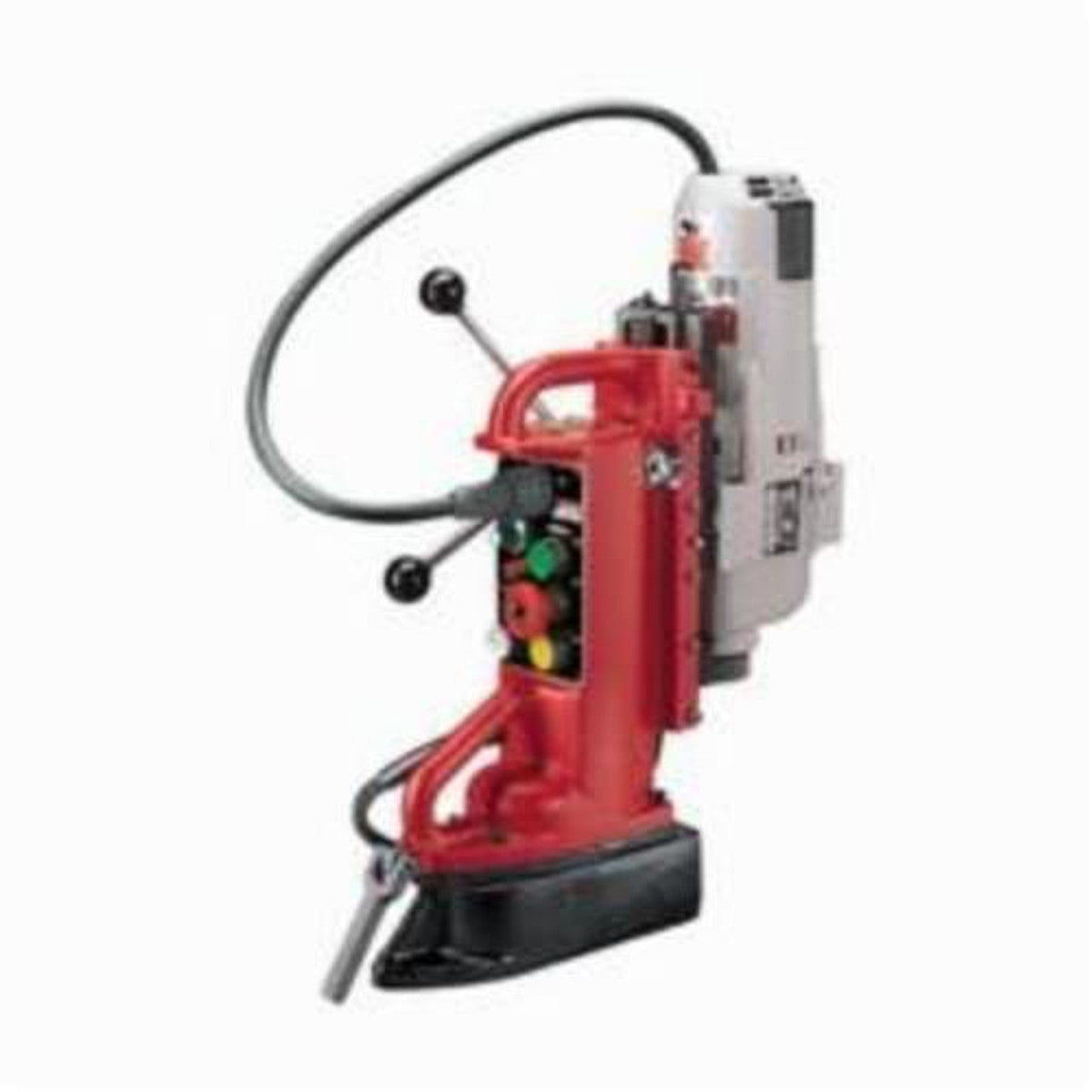

Milwaukee 4209-1 Adjustable Position Heavy Duty, 1-1/4 in Chuck, 2 hp, 5-3/32 in Drill to Center From Base, 750/375 rpm Spindle, 120 VAC

Product Description

Milwaukee® Electromagnetic Drill Press, Adjustable Position Heavy Duty, 1-1/4 in Chuck, #3 Morse Spindle Taper, 11 in Spindle Travel, 750/375 rpm Spindle Speed, 1 Spindle Speed, 1530/1600 lb Drill Point Pressure, 5-3/32 in Drill to Center From Base, 25-1/4 in Overall Height, 2 hp, 120 VAC, 12.5 A, 21 in L x 7 in W

No job is too large for this heavy-duty drill press. This unit features the 4203 adjustable-position, variable-speed base and the 4292-1 1-1/4 in drill motor. Built for production drilling, this 11.5-amp drill press can handle the toughest drilling jobs with up to a 1-1/4 in threaded hole capacity. The two-speed motor runs at 375 and 750 rpm, geared low for maximum torque. It can produce up to 1600 pounds of drill point pressure with a 1 in steel plate. Feedback speed control helps you maintain speed during operation. This unit features a No. 3 Morse Taper Chuck, for fast and easy bit changes while eliminating slippage and breakage. The dual-mount gear case with reverse mount permits tight quarter drilling. Use with the larger 4203 adjustable base (sold separately) for the toughest applications.



PACKAGE DESCRIPTION

Package Quantity: 1/PK



WHAT'S INCLUDED

(1) 4203 Electromagnetic Drill Press Base, (1) 4292-1 NO 3 MT Motor and (1) 6 ft Safety Chain



FEATURES

• Powerful 11.5 A motor, engineered for the toughest applications
• Dual mount gear case with reverse mount permits tight quarter drilling
• 1-1/4 in tap capacity, taps up to 1 in, 14 threaded holes
• Maximum force, develops up to 1600 lb of drill point pressure with a 1 in steel plate
• Solid state electronic switching, offers faster, smoother and quieter switching for a longer product lifespan
• Line lockout, prevents tool from operating if voltage is restored to an interrupted line
• Forward/reverse electronic feedback speed control, soft start and 6 ft safety chain
• 9 ft fixed cord
• Red/grey/black finish
• Computer controlled reverse
• Motor magnet lockout prevents de-mag during operation
• Full wave holding power
• Steel table
• Grounded construction
• Use with the larger 4203 adjustable base for the toughest applications
• 1 in-14 table load capacity



SPECIFICATIONS

Type:	Adjustable Position Heavy Duty
Chuck Size:	1-1/4
Spindle Taper:	#3 Morse
Spindle Travel:	11
Spindle Speed:	750/375
Number of Spindle Speeds:	1
Drill Point Pressure:	1530/1600
Drill to Center From Base:	5-3/32
Overall Height:	25-1/4
Horsepower:	2
Voltage Rating:	120
Amperage Rating:	12.5
Dimensions:	21 in L x 7 in W
