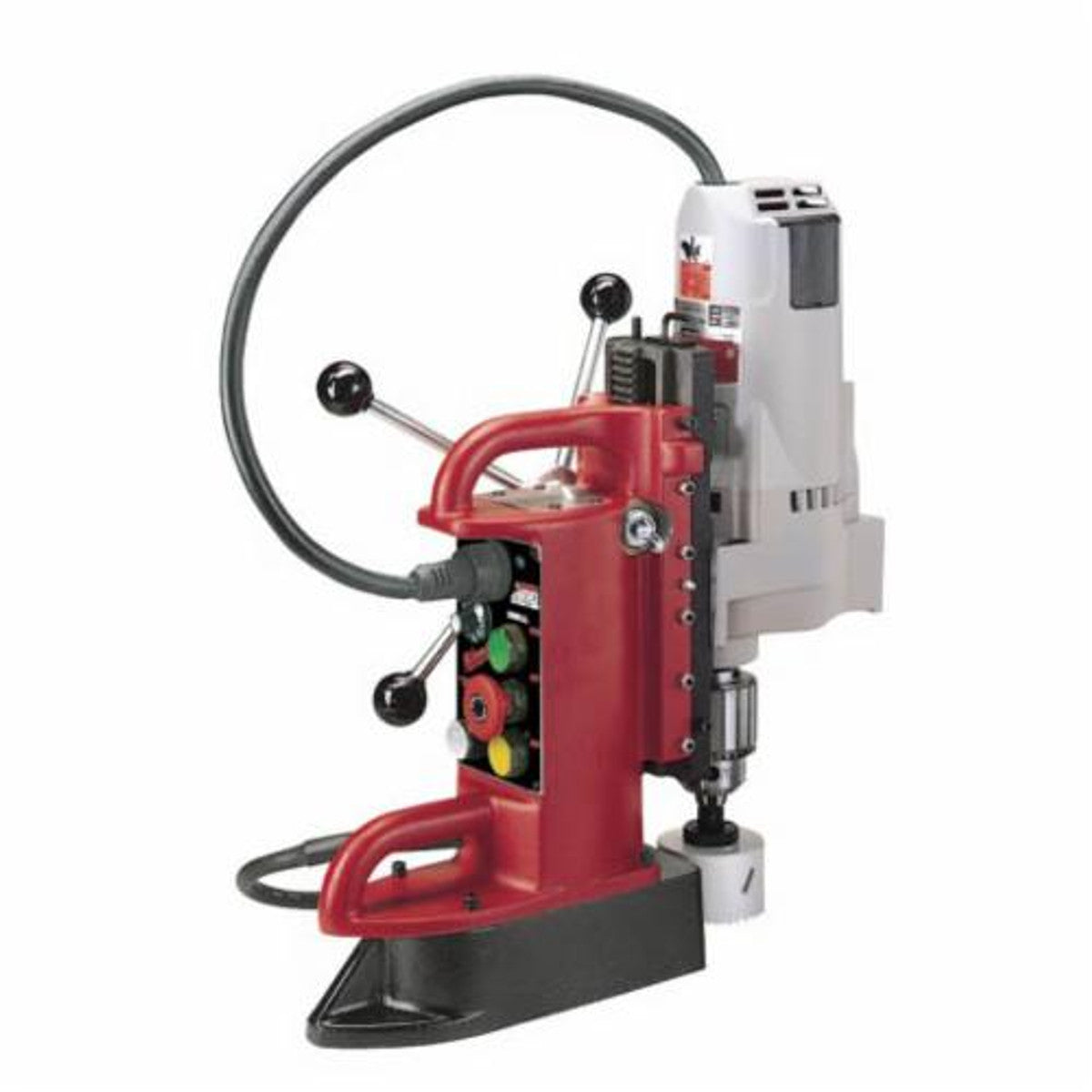

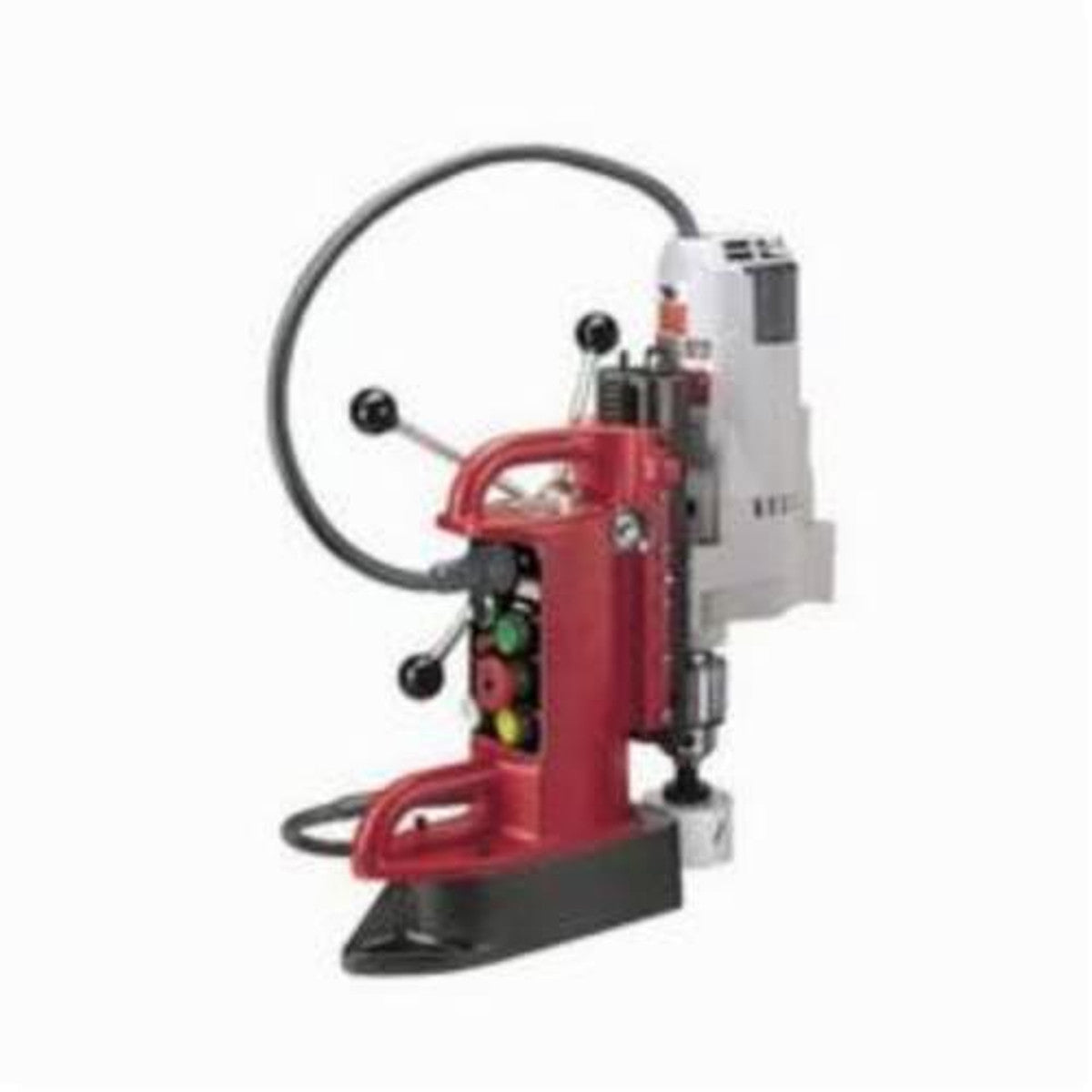

Milwaukee 4210-1 Fixed Position, 3/4 in Chuck, 2 hp, 5-3/32 in Drill to Center From Base, 350 rpm Spindle, 120 VAC

Product Description

Milwaukee® Electromagnetic Drill Press, Fixed Position, 3/4 in Chuck, 9 in Spindle Travel, 350 rpm Spindle Speed, 1 Spindle Speed, 1630/1670 lb Drill Point Pressure, 5-3/32 in Drill to Center From Base, 20-1/2 in Overall Height, 2 hp, 120 VAC, 12.5 A, 18-3/4 in L x 7 in W

Drill easily into any metal 1/2 in or thicker. This combination unit features the 4202 fixed-position, variable-speed base and 4262-1 3/4 in drill motor. A heavy-duty unit built for production drilling, this 12.5-amp drill motor can handle the toughest drilling jobs with up to a 3/4 in threaded hole capacity. The unit runs at 350 no-load RPM, geared low for maximum torque. It can produce up to 1630/1670 pounds of drill point pressure with a 1 in steel plate. Feedback speed control helps you maintain speed and the motor/magnet lockout prevents demagnetization during operation. This unit features a 3/4 in chuck for fast and easy bit changes while eliminating slippage and breakage. The dual-mount gear case with reverse mount permits tight quarter drilling.



PACKAGE DESCRIPTION

Package Quantity: 1/PK



WHAT'S INCLUDED

(1) 4202 Electromagnetic Drill Press Base, (1) 4262-1 3/4 in Motor, (1) 6 ft Safety Chain, (1) 2Y338 Chuck and (1) 2Y344 Key



FEATURES

• Powerful 12.5 A motor, engineered for the toughest applications
• Dual mount gear case with reverse mount permits tight quarter drilling
• 3/4 in tap capacity, taps up to 1 in, 14 threaded holes
• Maximum force, develops up to 1670 lb of drill point pressure with a 1 in steel plate
• Solid state electronic switching, offers faster, smoother and quieter switching for a longer product lifespan
• Line lockout, prevents tool from operating if voltage is restored to an interrupted line
• Forward/reverse electronic feedback speed control, soft start and 6 ft safety chain
• 9 ft fixed cord
• Red/grey/black finish
• Computer controlled reverse
• Motor magnet lockout prevents de-mag during operation
• Full wave holding power
• Cast iron table
• Grounded construction
• 1 in-14 table load capacity



SPECIFICATIONS

Type:	Fixed Position
Chuck Size:	3/4
Spindle Travel:	9
Spindle Speed:	350
Number of Spindle Speeds:	1
Drill Point Pressure:	1630/1670
Drill to Center From Base:	5-3/32
Overall Height:	20-1/2
Horsepower:	2
Voltage Rating:	120
Amperage Rating:	12.5
Dimensions:	18-3/4 in L x 7 in W
