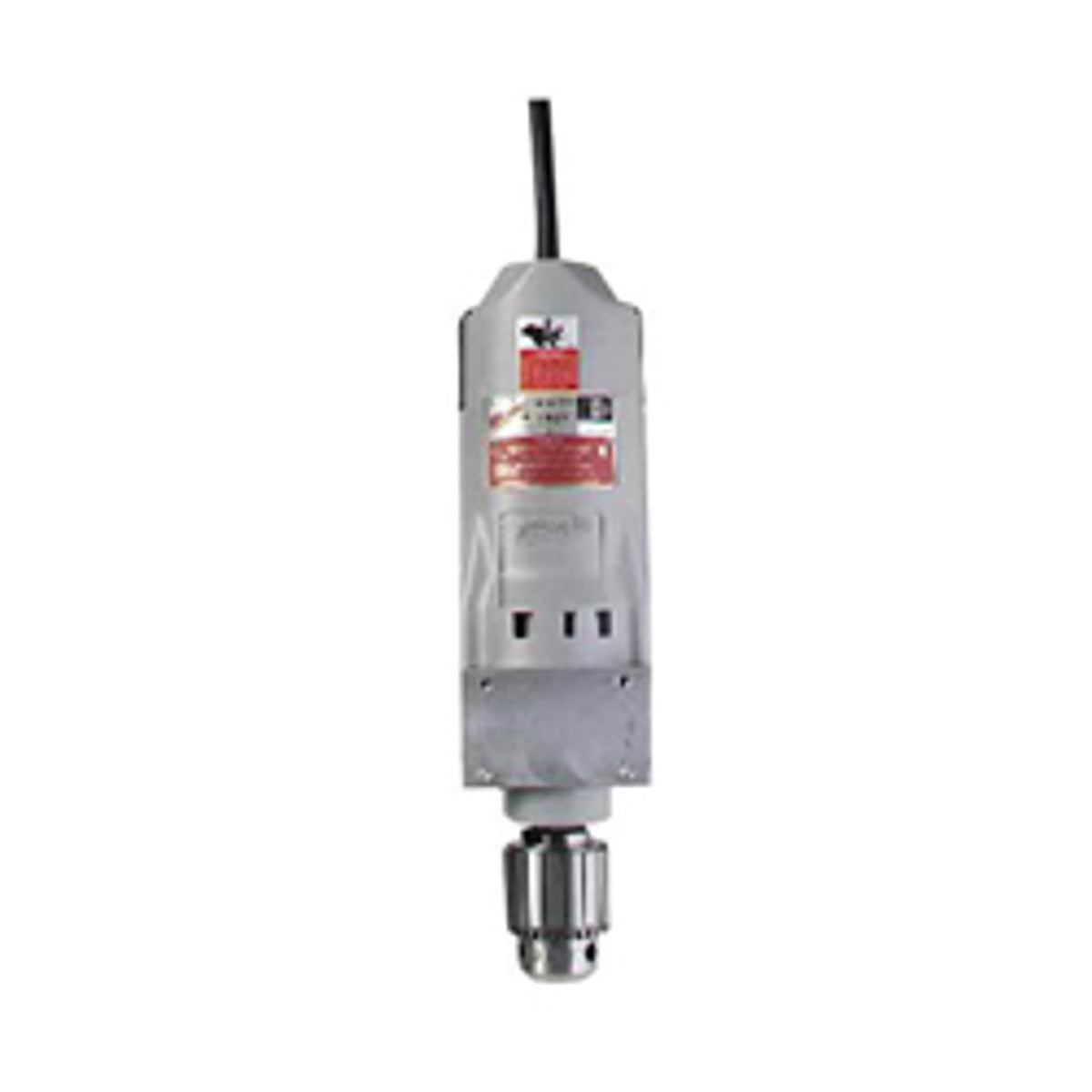

Milwaukee 4262-1 3/4" 11.5 AMP Electro-Magnetic Drill Press Motor

Product Description

Milwaukee Motor, Heavy Duty Portable, For Use With: Electromagnetic Drill Press, 120 VAC, 11.5 A, 350 rpm No Load, 3/4 in Drill Capacity, Metal, Red/Gray/Black, 20.13 in L x 6.44 in W x 4.44 in H

No job is too large for this heavy-duty drill press motor. Built for production drilling, this 11.5-amp drill motor can handle the toughest drilling jobs with up to a 3/4 in threaded hole capacity. The unit runs at 350 no-load RPM, geared low for maximum torque. It can produce up to 1670 pounds of drill point pressure with a 1 in steel plate. A 3/4 in chuck permits fast and easy bit changes while eliminating slippage and breakage. The dual-mount gear case with reverse mount permits tight quarter drilling. Use with the larger 4203 adjustable base (sold separately) for the toughest applications.



PACKAGE DESCRIPTION

Package Quantity: 1/PK



FEATURES

• Heavy duty unit is built for production drilling and will take the toughest drilling jobs
• Dual mount gear case with reverse mount permits tight quarter drilling
• 3/4 in chuck permits fast and easy bit changes while eliminating slippage and breakage
• Maximum force, develops up to 1670 lb of drill point pressure with a 1 in steel plate
• Unit runs at 350 no-load rpm, geared low for maximum torque
• In line handle type
• 3/4 in hex chuck size
• 30.9 ft cord
• 1630/1670 lb drill point pressure
• 1-14 tap capacity



SPECIFICATIONS

Type:	Heavy Duty Portable
Suitable For Use With:	Electromagnetic Drill Press
Specifications:	120 VAC, 11.5 A, 350 rpm No Load, 3/4 in Drill Capacity
Material:	Metal
Color:	Red/Gray/Black
Dimensions:	20.13 in L x 6.44 in W x 4.44 in H



STANDARD APPROVALS

UL Listed, CSA Certified
