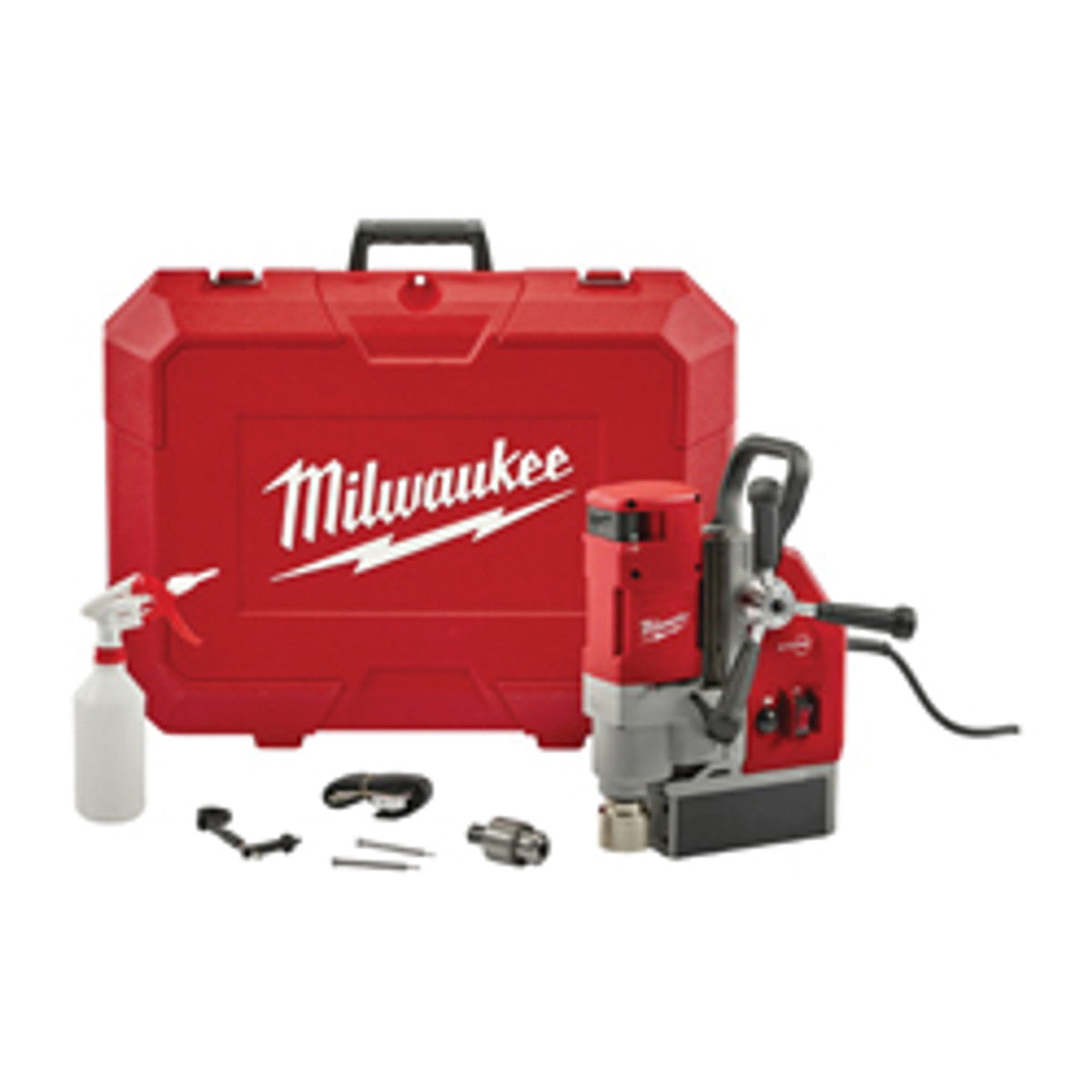

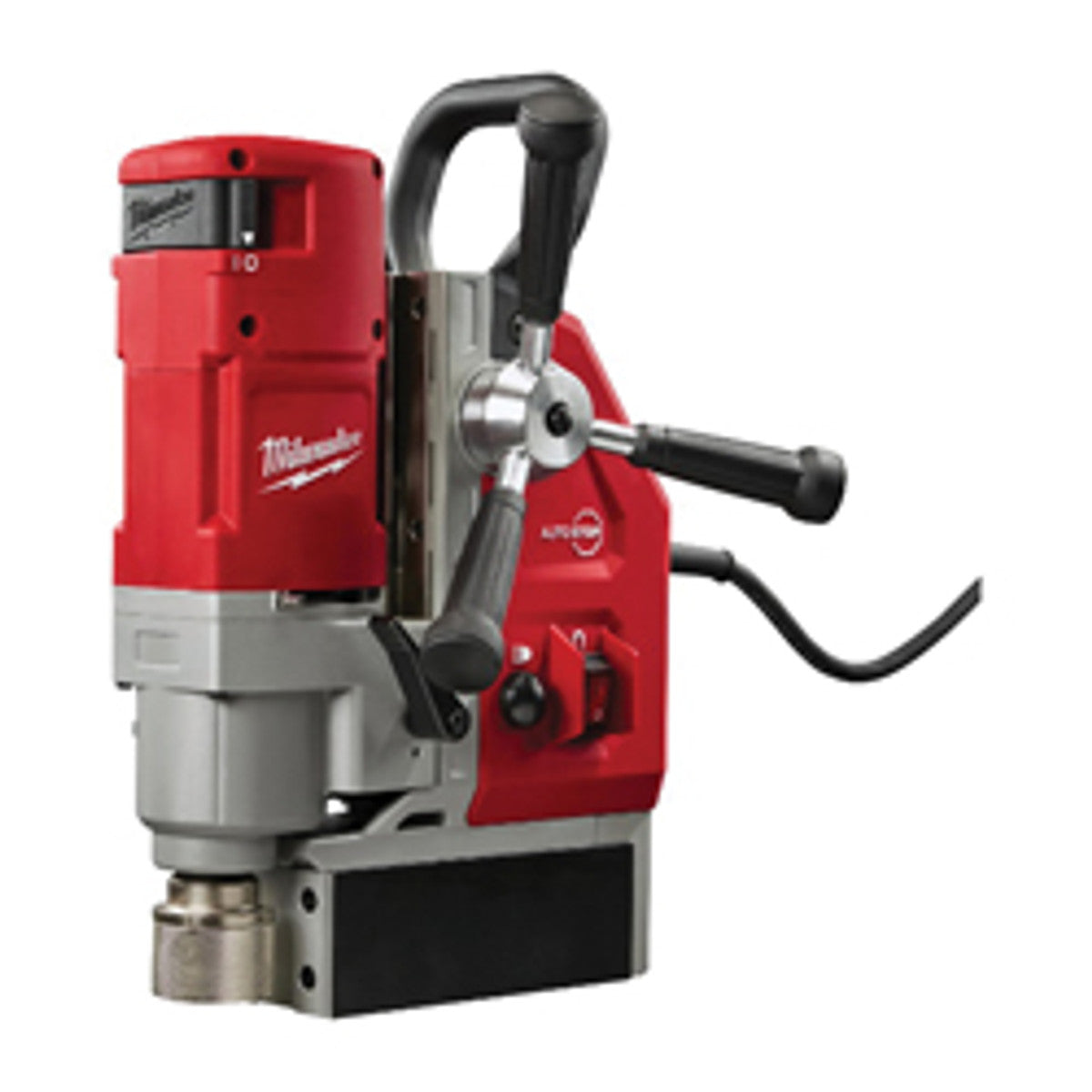

Milwaukee 4272-21 1-5/8" Compact Electro-Magnetic Drill Kit, 2.3HP, 13 AMP

Product Description

Milwaukee Electromagnetic Drill Kit, 3/4 in Chuck, 5-3/4 in Spindle Travel, 475/730 rpm Spindle Speed, 2 Spindle Speed, 600 lb Drill Point Pressure, 1-1/4 in Drill to Center From Base, 12-1/4 in Overall Height, 2.3 hp, 120 VAC, 13 A, 11-1/4 in L x 7-1/2 in W

The Milwaukee® 1-5/8 in Electromagnetic Drill delivers the faster set-up, cutting and drilling. It's 13 A motor delivers the fastest drilling with annular cutters or twist drill bits. Equipped with a 2-speed gear box the tool can be adjusted tool-free between annular cutters at 475 rpm and twist drill bits at 730 rpm.



PACKAGE DESCRIPTION

Package Quantity: 1/PK



WHAT'S INCLUDED

(2) 1 in Retractable Pilot Pin, (1) 3/4 in Weldon to 1/2 in Chuck adapter, Carrying Case, Chuck Key, Lubrication Spray Bottle and Safety Strap



FEATURES

• Tool free adjustment cutter to twist bit
• Optimized cutting & drilling speeds
• Tool free motor head adjustment
• 3/4 in weldon quick change arbor
• Auto stop lift off detection
• Tool free feed handle
• The Milwaukee 1-5/8 in electromagnetic drill will deliver faster set-up, cutting and drilling
• Its 13 amp motor delivers the fastest drilling w/ annular cutters or twist drill bits
• Equipped with a 2-speed gear box the tool can be adjusted tool-free between annular cutters



SPECIFICATIONS

Chuck Size:	3/4 in
Spindle Travel:	5-3/4 in
Spindle Speed:	475/730 rpm
Number of Spindle Speeds:	2
Drill Point Pressure:	600 lb
Drill to Center From Base:	1-1/4 in
Overall Height:	12-1/4 in
Horsepower:	2.3 hp
Voltage Rating:	120 VAC
Amperage Rating:	13 A
Dimensions:	11-1/4 in L x 7-1/2 in W
