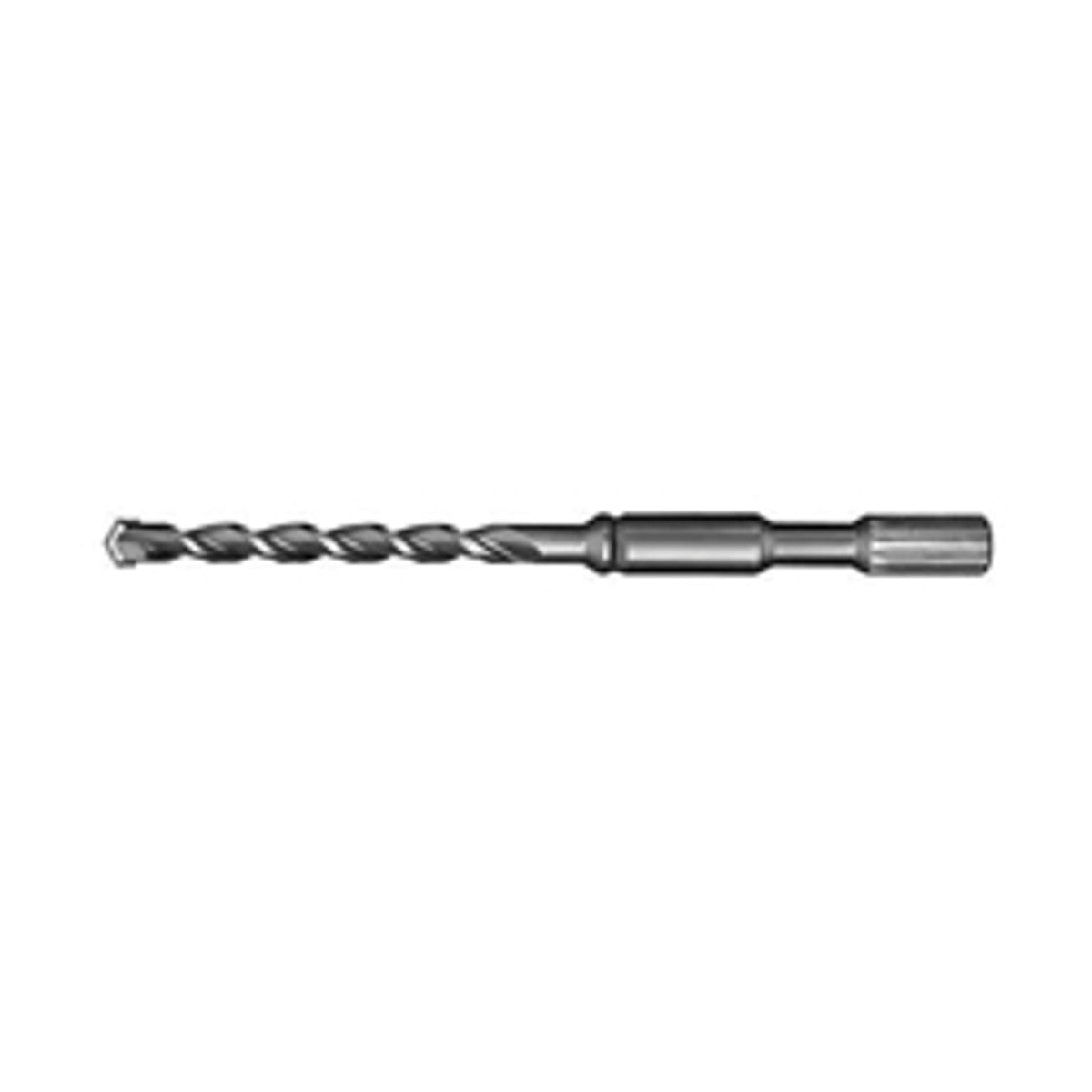

Milwaukee 48-20-4063 5/8" x 16" Spline 2-Cutter Drill Bit

Product Description

Milwaukee Rotary Hammer Drill, 2-Cutter, 5/8 in Dia, 16 in Overall Length, 10 in Cutting Depth, 10 in Flute Length, 3/4 in Shank, Spline Shank, Centering Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, Bright, Silver, Applicable Materials: Masonry

Milwaukee® Spline 2-Cutter Rotary Hammer drill bits are used for drilling intro brick, block and concrete.



PACKAGE DESCRIPTION

Package Quantity: 1/PK



FEATURES

• Brazing formula optimizes drilling for up to 20% longer life
• Unique flute geometry provides efficient dust removal
• Centering point and 4-cutter design provide accurate and precise round holes
• Two cutter spline bits have a series of 13 spline that slide into an equal but opposite set of spline in the drive system of the spline drive hammer
• This positive engagement of spline to spline allows maximum transmission of energy from the hammer to the bit
• Superior quality carbide nibs are vacuum brazed to a heat treated steel body resulting in two cutting edges which pulverize the concrete as the bit turns and pounds the work surface
• 11 in useable length



SPECIFICATIONS

Type:	2-Cutter
Diameter:	5/8 in
Overall Length:	16 in
Cutting Depth:	10 in
Flute Length:	10 in
Shank Size:	3/4 in
Shank Type:	Spline
Point Type:	Centering
Cutting Direction:	Right Hand
Cutting Edge Material:	Carbide
Material:	Carbide
Finish:	Bright
Color:	Silver
Applicable Materials:	Masonry
