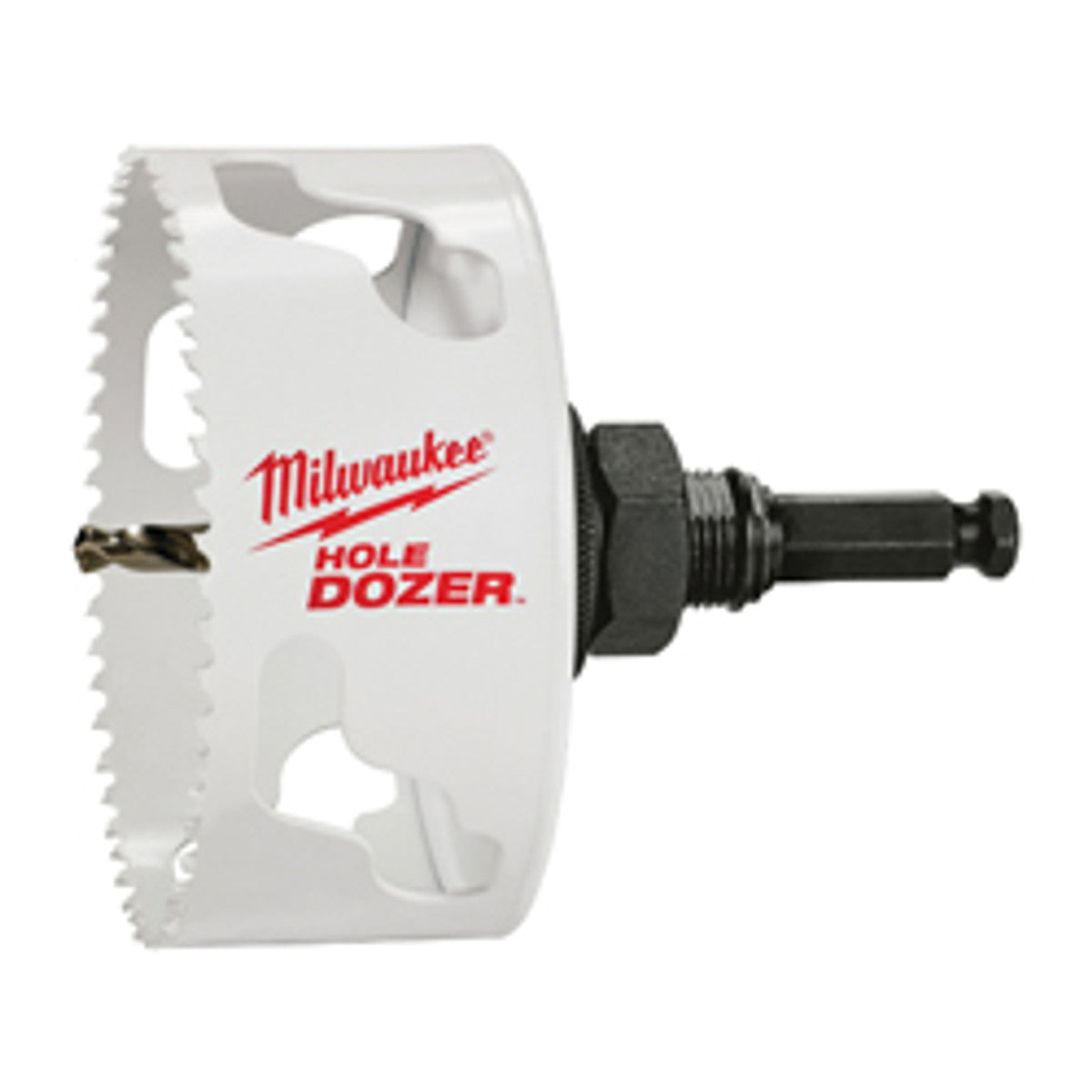

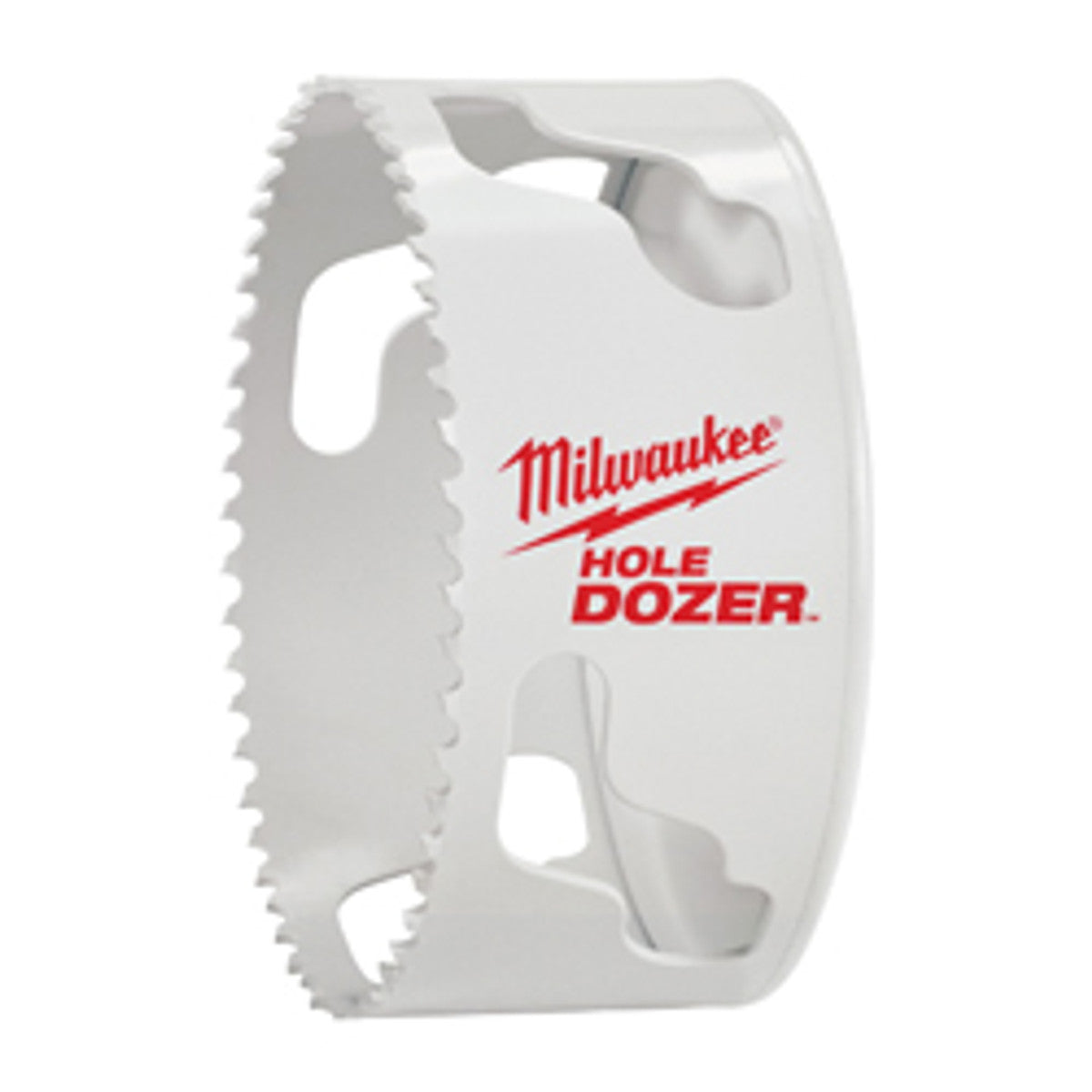

Milwaukee 49-56-0233 4-1/2" Hole Dozer™ Bi-Metal Hole Saw

Product Description

Milwaukee Ice Hardened Hole Saw, Series: Dozer, 4-1/2 in Dia, 1-5/8 in Cutting Depth, 3 TPI, 5/8-18 Arbor, 1-7/8 in Overall Length, 1/4 in Dia x 3-1/2 in L Drill, Bi-Metal HSS Cutting Edge, Bi-Metal Carbon Steel Body, Toothed Cutting Edge, 75 rpm (Mild Steel), 35 rpm (Stainless Steel), 50 rpm (Cast Iron) and 105 rpm (Aluminum), 3/8 in Chuck, Round Shank, Use Arbor: 49-56-7210, 49-56-7240, 49-56-7250 and 49-56-9100 mm Quick Change Arbor, Applicable Materials: Aluminum, Cast Iron, Mild Steel and Stainless Steel

Made in the USA, the Milwaukee® Hole Dozer™ Hole Saw features Rip Guard™, the strongest tooth form in the industry, backed by the Rip Guard™ Limited Lifetime Tooth Break Warranty. Each tooth is built with more steel behind the cutting edge for added strength. The Rip Guard™ warranty on tooth breaks is a first for the hole saw industry. The added tooth strength along with 8% cobalt give added life to the teeth, allowing for increased productivity on the jobsite, as well as continued hole quality. The Hole Dozer™ includes Plug Jack™, an all access slot design that allows for full access during plug removal. The Plug Jack™ gives access lower into the cup for thick material and higher towards the teeth for thin material. With multiple positions to apply leverage and better plug access, Plug Jack™ increases productivity and eliminates wasted downtime between holes. For fast, tool-free change-outs, use Milwaukee® universal Quick-Change Arbors. 49-56-7210, 49-56-7240, 49-56-7250 and 49-56-9100.



PACKAGE DESCRIPTION

Package Quantity: 1/PK



FEATURES

• Bi-metal construction with 8% cobalt for increased wear resistance
• Optimized tooth form for up to 2X faster cutting
• Functional slots for faster plug removal
• Matrix II bi-metal teeth for greater durability
• Wide, angled and offset slots for easy plug access
• Positive rake angle for fast cutting
• Ice hardened cryogenically treated for up to 50% longer life



SPECIFICATIONS

Series:	Dozer™
Diameter:	4-1/2 in
Cutting Depth:	1-5/8 in
TPI or Pitch:	3 TPI
Arbor Size:	5/8-18
Overall Length:	1-7/8 in
Drill Size:	1/4 in Dia x 3-1/2 in L
Cutting Edge Material:	Bi-Metal HSS
Body Material:	Bi-Metal Carbon Steel
Cutting Edge Style:	Toothed
Speed:	75 rpm (Mild Steel), 35 rpm (Stainless Steel), 50 rpm (Cast Iron) and 105 rpm (Aluminum)
Chuck Size:	3/8 in
Shank Type:	Round
Use Arbor:	49-56-7210, 49-56-7240, 49-56-7250 and 49-56-9100 mm Quick Change Arbor
Applicable Materials:	Aluminum, Cast Iron, Mild Steel and Stainless Steel
