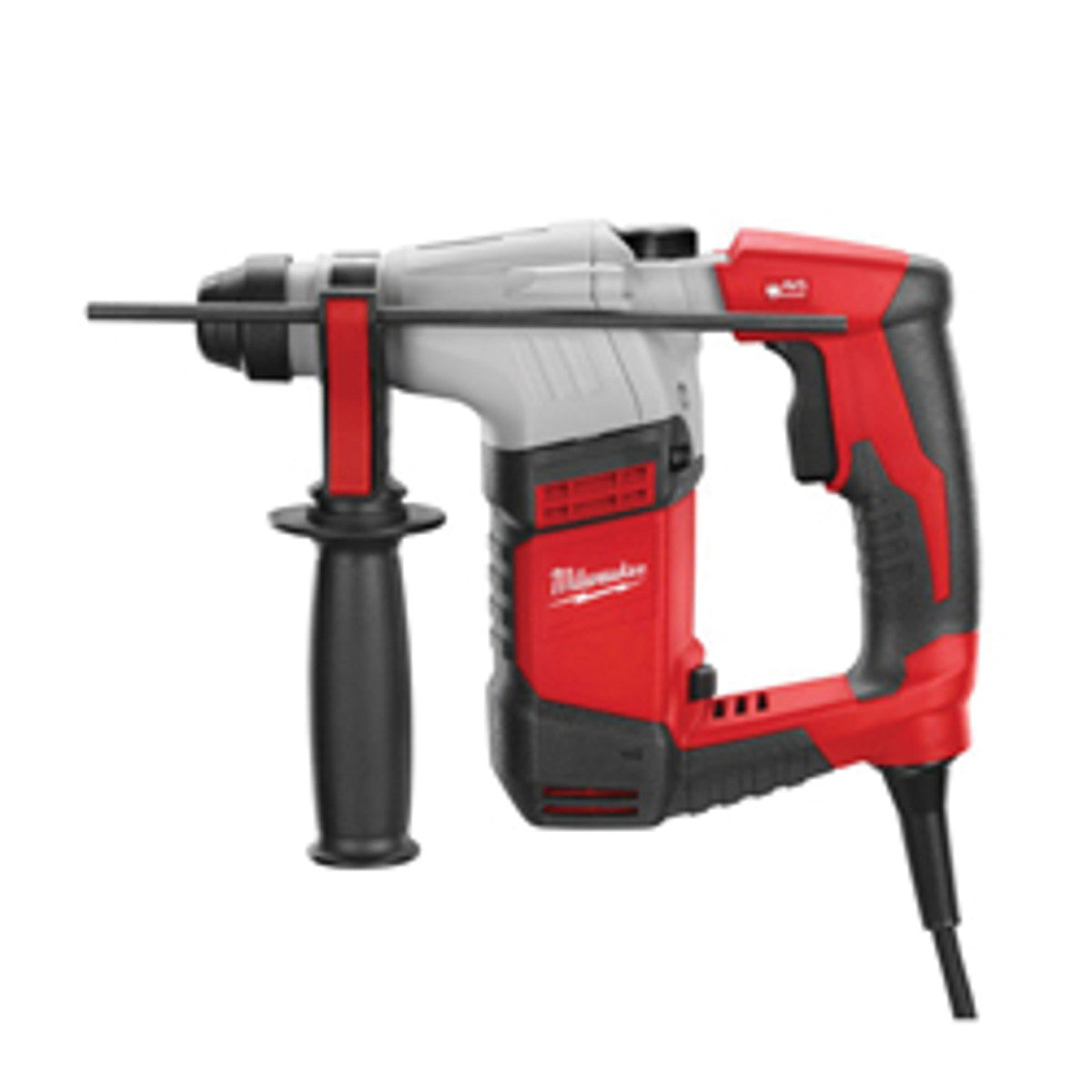

Milwaukee 5263-21 5/8" SDS-Plus Rotary Hammer Kit

Product Description

Milwaukee Corded Rotary Hammer Kit, Reversing, 5/8 in Chuck, SDS Plus Chuck, 4400 bpm, 1.5 ft-lb Impact, 3700 rpm, 120 VAC, 5.5 A, Mechanical Clutch, Metal Gear Box Housing, D-Handle, Drop Motor, Side Handle Handle, Variable Speed Trigger, Forward/Reverse Switch, Clutch Control, 10-9/10 in L

At just 10.9 in long and 4.6 pounds, Milwaukee® Tool's 5/8 in SDS-Plus Rotary Hammer makes drilling overhead and in tight spaces easier, yet it's powerful enough for most professional applications. With a 5.5 A motor, it delivers 0-3700 rpm, 0-4400 bpm and 1.5 ft-lb of torque. The innovative gear design and a drop motor provide unmatched balance, while Milwaukee® unique Anti-Vibration System provides added comfort by minimizing vibration. A mechanical clutch protects the motor when the bit binds and two-mode operation offers maximum versatility regardless of the application.



PACKAGE DESCRIPTION

Package Quantity: 1/PK



WHAT'S INCLUDED

Carrying Case and Depth Rod



FEATURES

• Powerful 5.5 A motor delivers 0-3700 rpm, 0-4400 bpm and 1.5 ft-lb of torque for faster drilling speeds
• Compact 10.9 in profile lets you work more efficiently in tight spaces
• AVS anti-vibration system minimizes vibration for maximum user comfort
• Lightweight 4.6 lb design reduces fatigue when drilling overhead and in horizontal applications
• Mechanical clutch protects the motor when the bit binds
• 2-Mode operation for versatility; rotary hammer or rotation only
• 54 ft grounded cord
• 2-1/8 in thin wall core bit capacity
• Ball bearing
• Red color



SPECIFICATIONS

Type:	Reversing
Chuck Size:	5/8 in
Chuck Type:	SDS Plus
Blows per Minute:	4400 bpm
Impact Energy:	1.5 ft-lb
Speed:	3700 rpm
Voltage Rating:	120 VAC
Amperage Rating:	5.5 A
Housing Material:	Mechanical Clutch, Metal Gear Box
Handle Style:	D-Handle, Drop Motor, Side Handle
Control Type:	Variable Speed Trigger, Forward/Reverse Switch, Clutch
Dimensions:	10-9/10 in L



STANDARD APPROVALS

CSA Certified, ETL Listed, UL Listed
