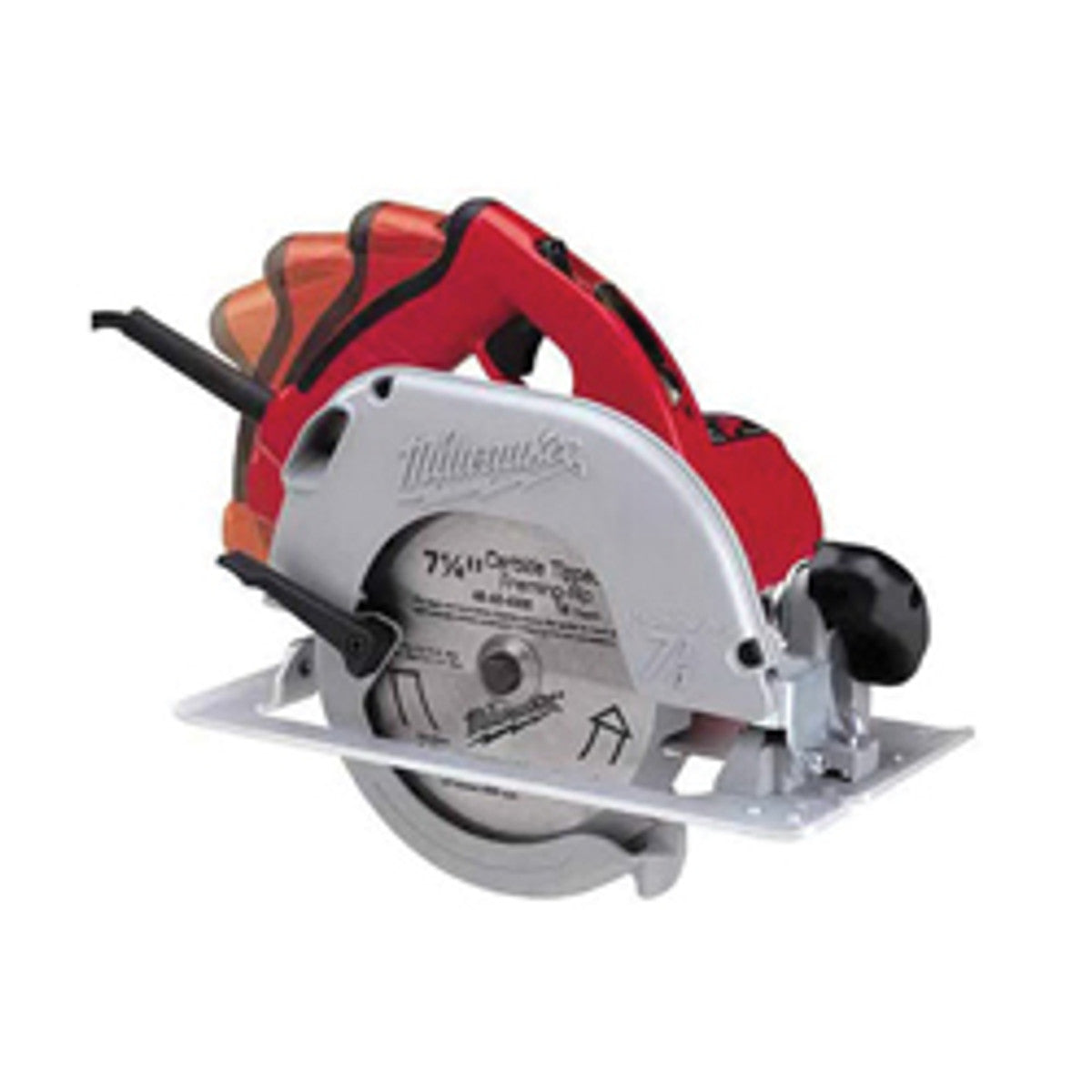

Milwaukee 6390-21 7-1/4" TILT-LOK Circular Saw With Hard Case

Product Description

Milwaukee Corded Circular Saw Kit, Series: TILT-LOK, 7-1/4 in Dia Blade, 5/8 in, 5800 rpm, Cutting Capacity: 1-13/16 in at 45 deg, 1-11/16 in at 50 deg, 2-7/16 in 90 deg, 45 deg, 50 deg, 90 deg Cutting Angle, Bevel Capacity: 50 deg, Metal Shoe, 3.25 hp, 120 VAC/VDC, 15 A, Plastic Housing, Soft Grip, Front Palm/Top D-Handle Handle, 9 ft Fixed, Double Insulated Cord, On/Off Control, 13-3/4 in L

The TILT-LOK™ handle on Milwaukee® 6390-20 is the most revolutionary concept for circular saws in years. The eight position cushioned top handle adjusts to any cutting application maximizing comfort and control. Weighing in at 10.4 pounds and delivering 3.25 maximum horsepower, this tool offers the best power to weight ratio in the industry. The blade can bevel to 50 deg and offers superior visibility and a clear sight line from either side. Helical steel gears and a 22 A switch are just two of the features that ensure the Milwaukee® reputation for durability.



PACKAGE DESCRIPTION

Package Quantity: 1/PK



APPLICATION

Cutting Applications



WHAT'S INCLUDED

Blade Wrench, Circular Saw Blade and Carrying Case



FEATURES

• 15 A, 3.25 peak hp motor - most powerful circle saw cuts tough materials including headers, microlams and wet lumber with ease
• Wide, clear sight line - superior blade visibility from either side
• Right position blade with spindle locking
• Lock-on switch that offers comfort during extended use
• The blade can bevel to 50 deg and offers superior visibility and a clear sight line from either side



SPECIFICATIONS

Series:	TILT-LOK™
Blade Size:	7-1/4 in Dia
Arbor/Shank Size:	5/8 in
Speed:	5800 rpm
Cutting Capacity:	1-13/16 in at 45 deg, 1-11/16 in at 50 deg, 2-7/16 in 90 deg
Cutting Angle:	45 deg, 50 deg, 90 deg
Bevel Capacity:	50 deg
Shoe Material:	Metal
Horsepower:	3.25 hp
Voltage Rating:	120 VAC/VDC
Amperage Rating:	15 A
Housing Material:	Plastic
Handle Style:	Soft Grip, Front Palm/Top D-Handle
Cord Type:	9 ft Fixed, Double Insulated
Control Type:	On/Off
Dimensions:	13-3/4 in L



STANDARD APPROVALS

CSA Certified, UL Listed
