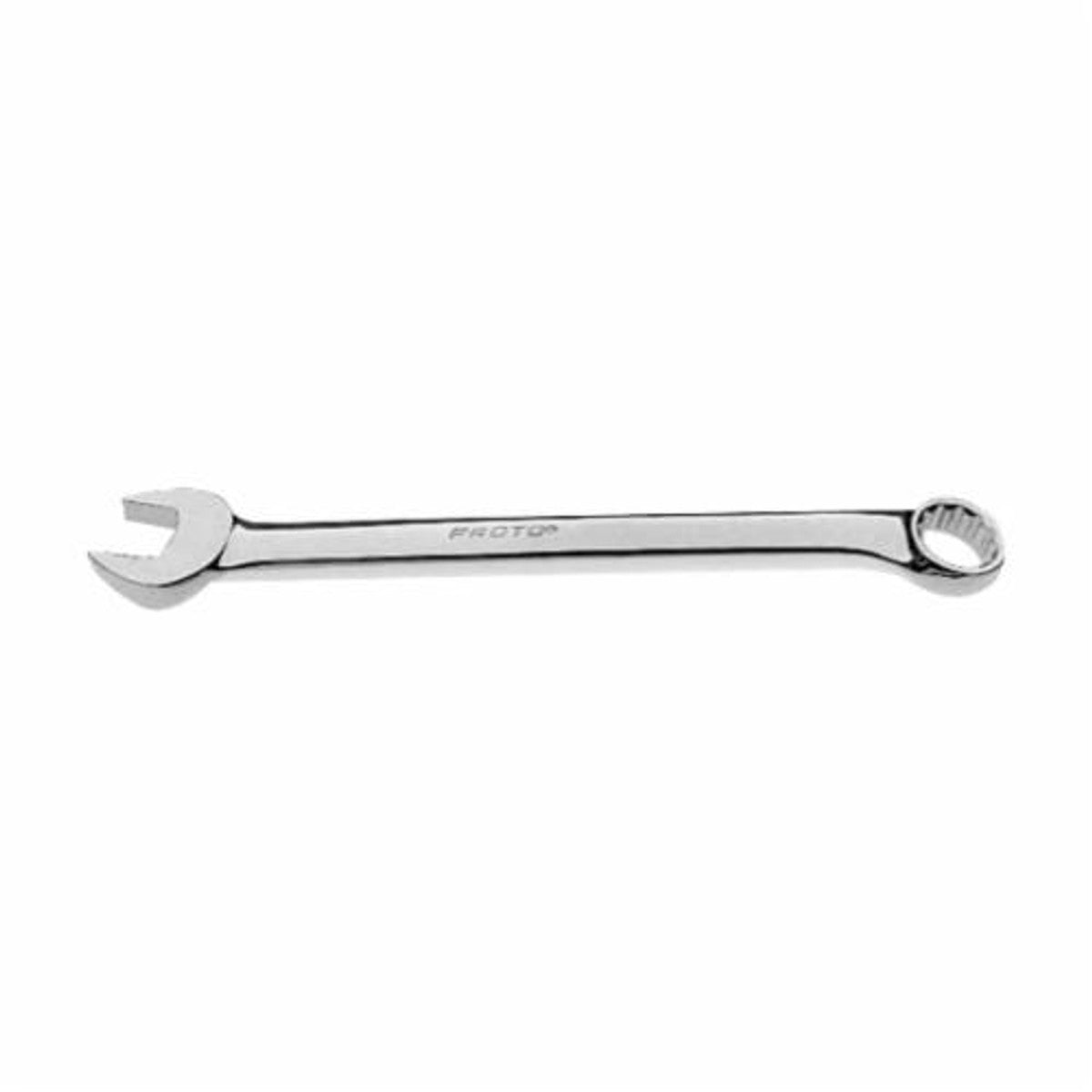

Proto J1224-T500 3/4" TorquePlus Full Polish Combination Wrench, 12 Point

Product Description

Proto® TorquePlus™ Combination Wrench, SAE, 3/4 in Wrench Opening, 12 Points, 11 in Overall Length, 15 deg Offset, 1-37/64 in Open End Width, 1-3/32 in Box End Width, 11/32 in Open End Thickness, 15/32 in Box End Thickness, 15 deg Head, 57/64 in Throat Depth, Alloy Steel, Polished



FEATURES

• Full polish finish provides corrosion resistance and easy to clean surfaces
• 12 point box end allows for fine indexing, helping to improve speed and access
• Anti-slip design (ASD) open end
• Fractional sizes 11/32 in and smaller do not have the ASD feature
• Box ends incorporate the TorquePlus™ system



SPECIFICATIONS

Box End Thickness:	15/32 in
Box End Width:	1-3/32 in
Finish:	Polished
Head Angle:	15 deg
Material:	Alloy Steel
Number of Points:	12
Offset Angle:	15 deg
Open End Thickness:	11/32 in
Open End Width:	1-37/64 in
Overall Length:	11 in
Throat Depth:	57/64 in
Type:	SAE
Warranty:	Lifetime
Wrench Opening:	3/4 in



STANDARD APPROVALS

ASME B107.100
