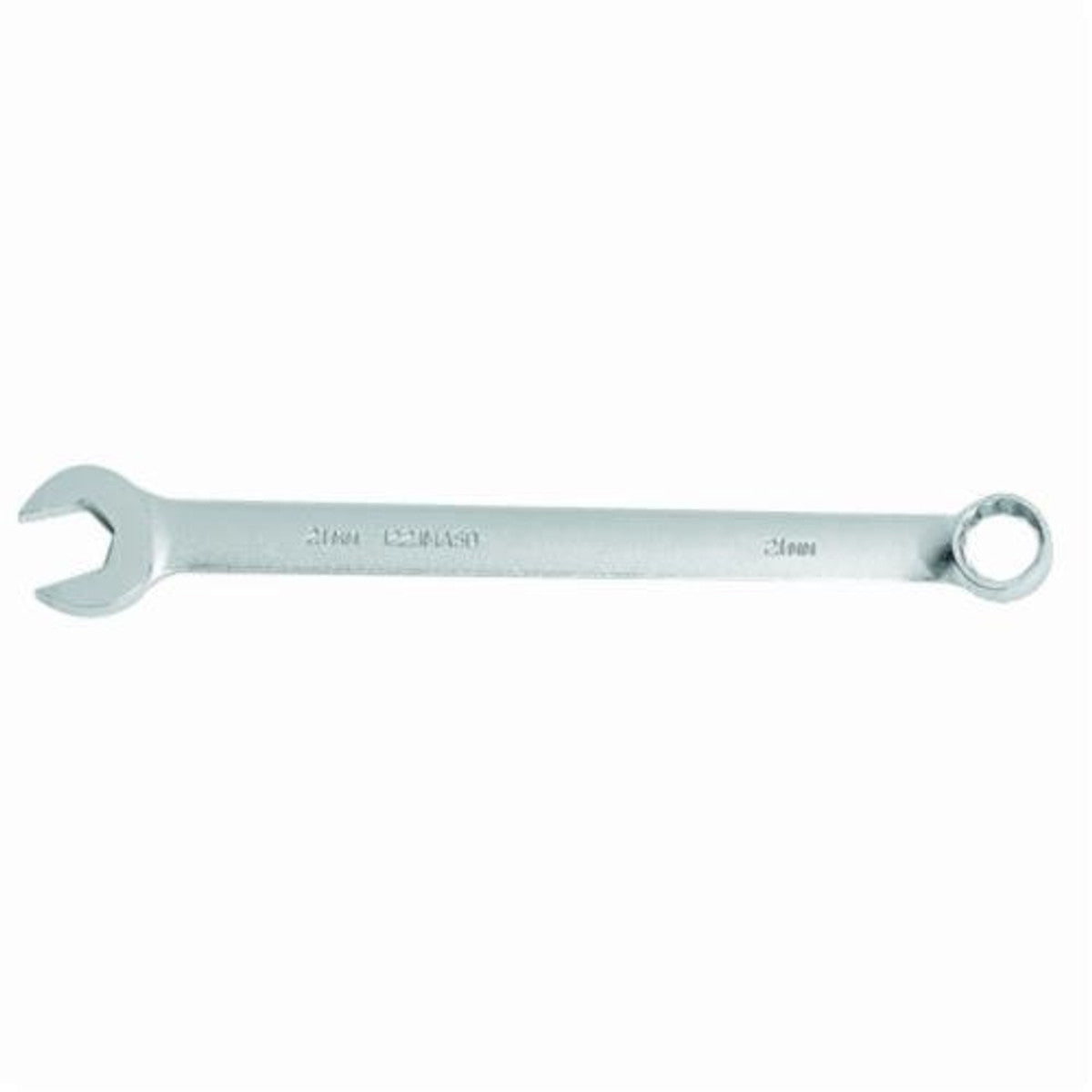

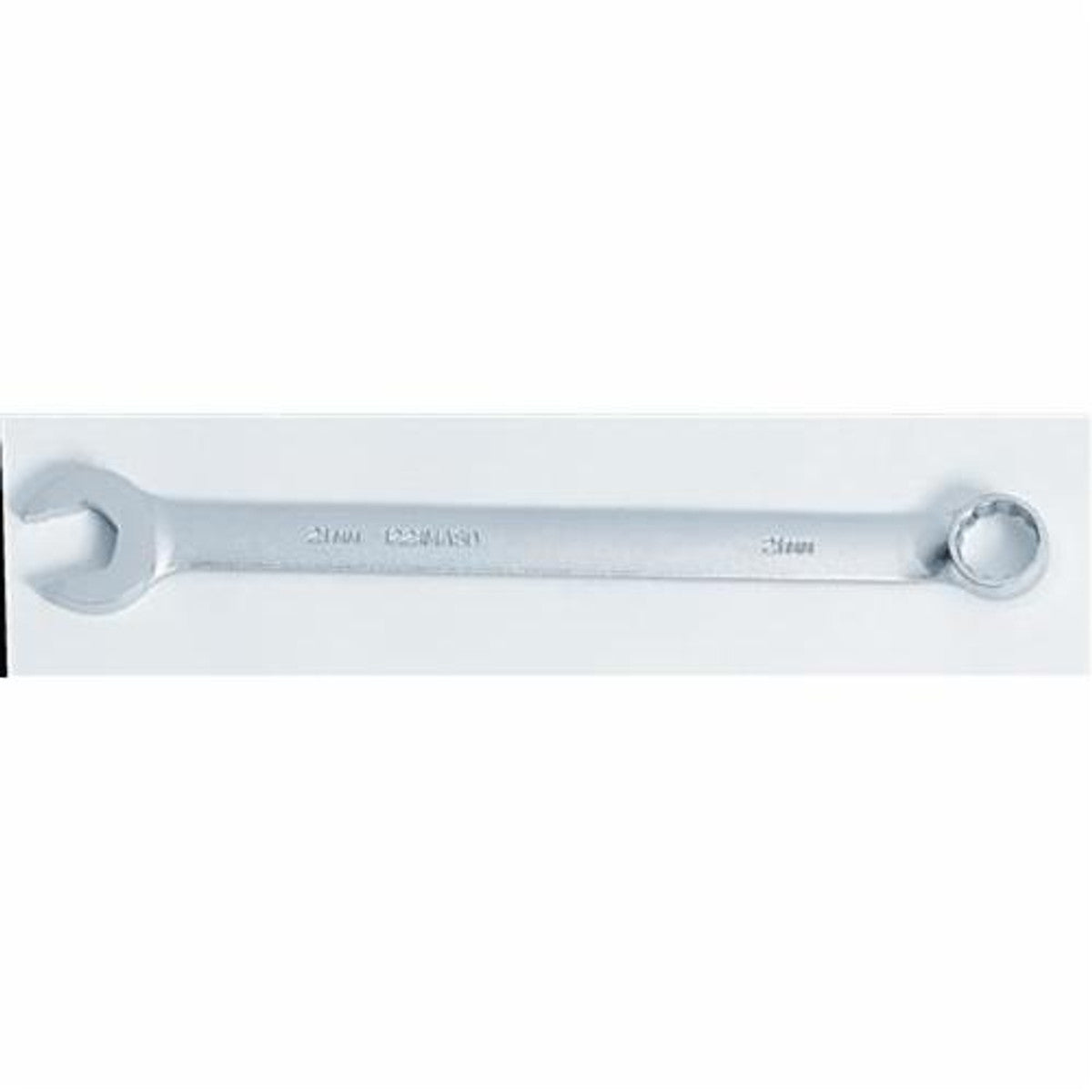

Proto TorquePlus J1224MASD 24mm, Combination Wrench, Metric, Satin Finish, 12 Points, Double End

Product Description

Proto® TorquePlus™ Combination Wrench, Double End, Measurement System: Metric, Non-Ratcheting/Spline Wrench, 24 mm Wrench Opening, 12 Points, 338 mm Overall Length, 15 deg Offset, 48.2 mm Open End Width, 10.3 mm Open End Thickness, 34 mm Box End Width, 13.9 mm Box End Thickness, 15 deg Head, ASME B107.100 Specifications Met, 28.5 mm Throat Depth, Oval/Slip Resistant Grip/Straight Handle, Forged Alloy Steel, Satin



PACKAGE DESCRIPTION

Package Quantity: 6/BX



FEATURES

• Satin finish provides corrosion resistance and a slip resistant grip
• 12 point box end allows for fine indexing, helping to improve speed and access
• Fits 4, 6 and 12 point fasteners
• Anti-slip design (ASD) open end
• Metric sizes 9 mm and smaller and sizes 36 mm and larger do not have the ASD feature
• Box ends incorporate the TorquePlus™ system



SPECIFICATIONS

Type:	Double End
Measurement System:	Metric
Wrench Style:	Non-Ratcheting/Spline
Wrench Opening:	24
Number of Points:	12
Overall Length:	338
Offset Angle:	15 deg
Open End Width:	48.2
Open End Thickness:	10.3
Box End Width:	34
Box End Thickness:	13.9
Head Angle:	15 deg
Specifications Met:	ASME B107.100
Throat Depth:	28.5
Handle Style:	Oval/Slip Resistant Grip/Straight
Material:	Forged Alloy Steel
Finish/Coating:	Satin



STANDARD APPROVALS

ASME B107.100
