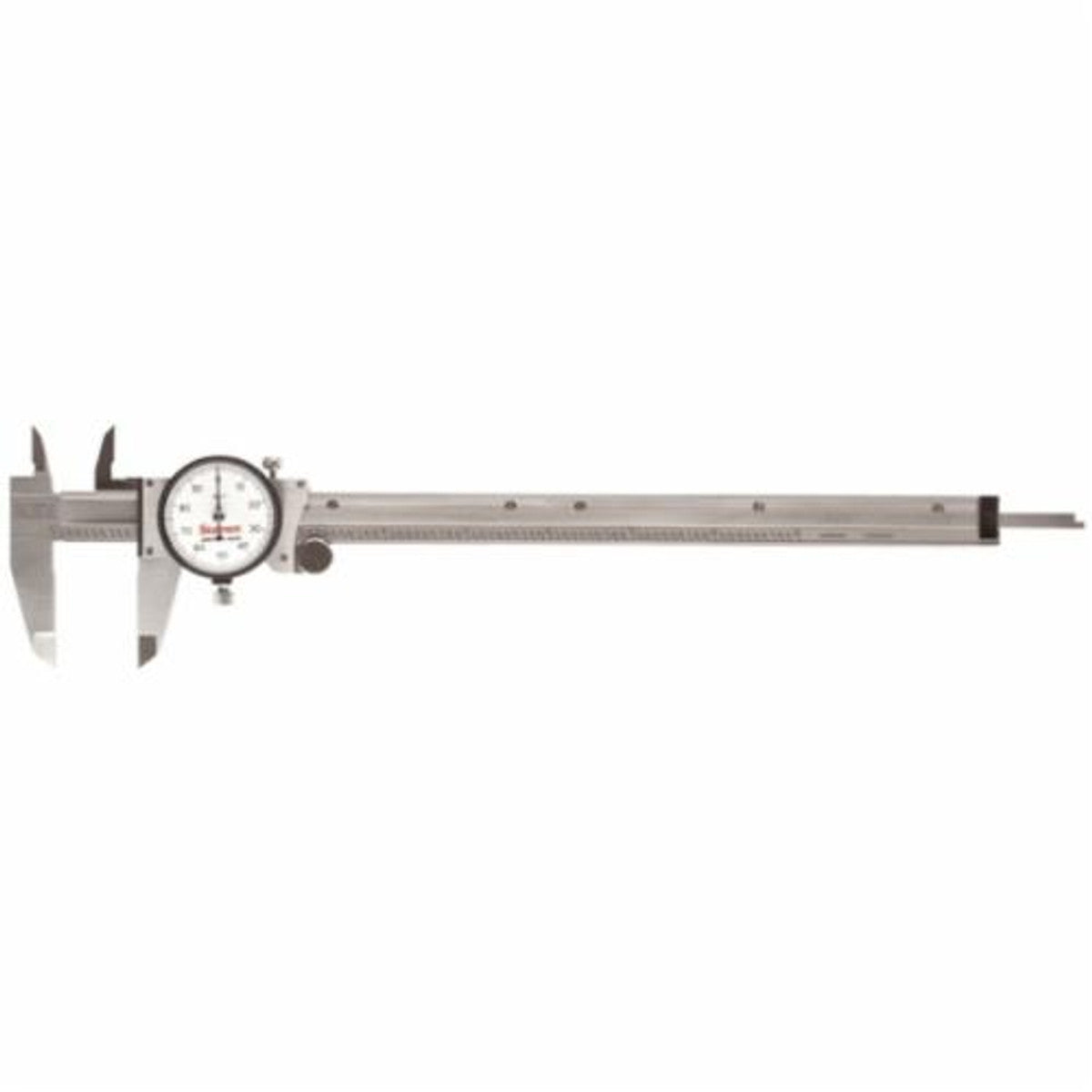

Starrett 120AZ-9 Dial Caliper w/Case, 0 - 9"

Product Description

Starrett® Dial Caliper, Accurate, Direct Reading, Reliable, Series: 120, 0 - 9 in, +/-0.001 in (0 - 6 in), +/-0.0015 in (6 - 9 in) Accuracy, Graduations: 0.001 in, 5/8 in Inside x 1-1/2 in Outside Jaw Depth, Measuring System: SAE, White Dial, Stainless Steel, Satin



FEATURES

• Sharp, clear dial graduations
• Sharp, black graduations on the satin finished bar
• Knife-edge contacts for both inside and outside measurements
• One hand use with the thumb-operated, fine adjustment roll
• Lock screw for dial bezel and lock screw for holding sliding jaw in position
• Hardened stainless steel bar, measuring surfaces, rack, gears and depth rod
• Positive, split-gear anti-backlash control
• Covered rack depth rod



SPECIFICATIONS

Accuracy:	+/-0.001 in (0 - 6 in), +/-0.0015 in (6 - 9 in)
Dial Color:	White
Finish:	Satin
Graduations:	0.001 in
Jaw Depth:	5/8 in Inside x 1-1/2 in Outside
Material:	Stainless Steel
Measuring Range:	0 - 9 in
Measuring System:	SAE
Series:	120
Type:	Accurate, Direct Reading, Reliable



STANDARD APPROVALS

U.S. Federal Spec
