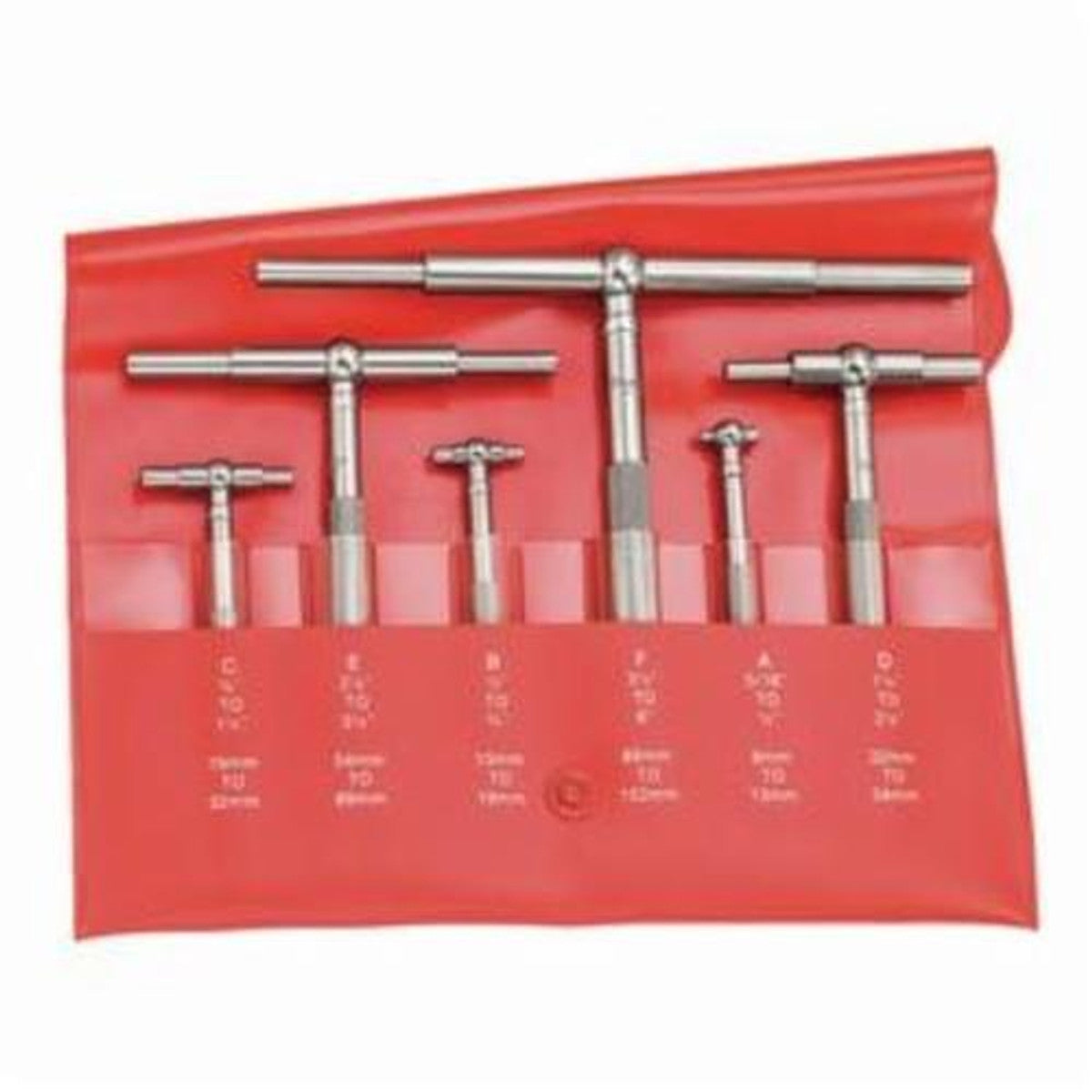

Starrett S579HZ 6-Piece Telescoping Gage Set W/Two Telescoping Arms

Product Description

Starrett® Telescoping Gage Set, Self-Centering, Series: 579, 5/16 - 6 in, 6 Piece, 2-3/8 - 3-1/4 in Rigid Handle, Steel, Satin Chrome Plated



APPLICATION

For determining the true size of holes, slots and recesses



FEATURES

• Precision ground radius on each gage provides two-point contact for maximum accuracy
• Greater range
• Constant spring tension gives uniform contact pressure
• Both plungers are easily locked at any desired setting
• Handles can be individually ordered, handles longer than 12 in (300 mm) are available on special order
• Handles are rigidly attached to the contact plungers and are automatically self-centering
• Ends of both contacts are hardened and ground to a radius to allow proper clearance on the smallest hole the gage will enter



SPECIFICATIONS

Finish:	Satin Chrome Plated
Handle Style:	2-3/8 - 3-1/4 in Rigid
Material:	Steel
Measuring Range:	5/16 - 6 in
Number of Pieces:	6
Series:	579
Type:	Self-Centering
