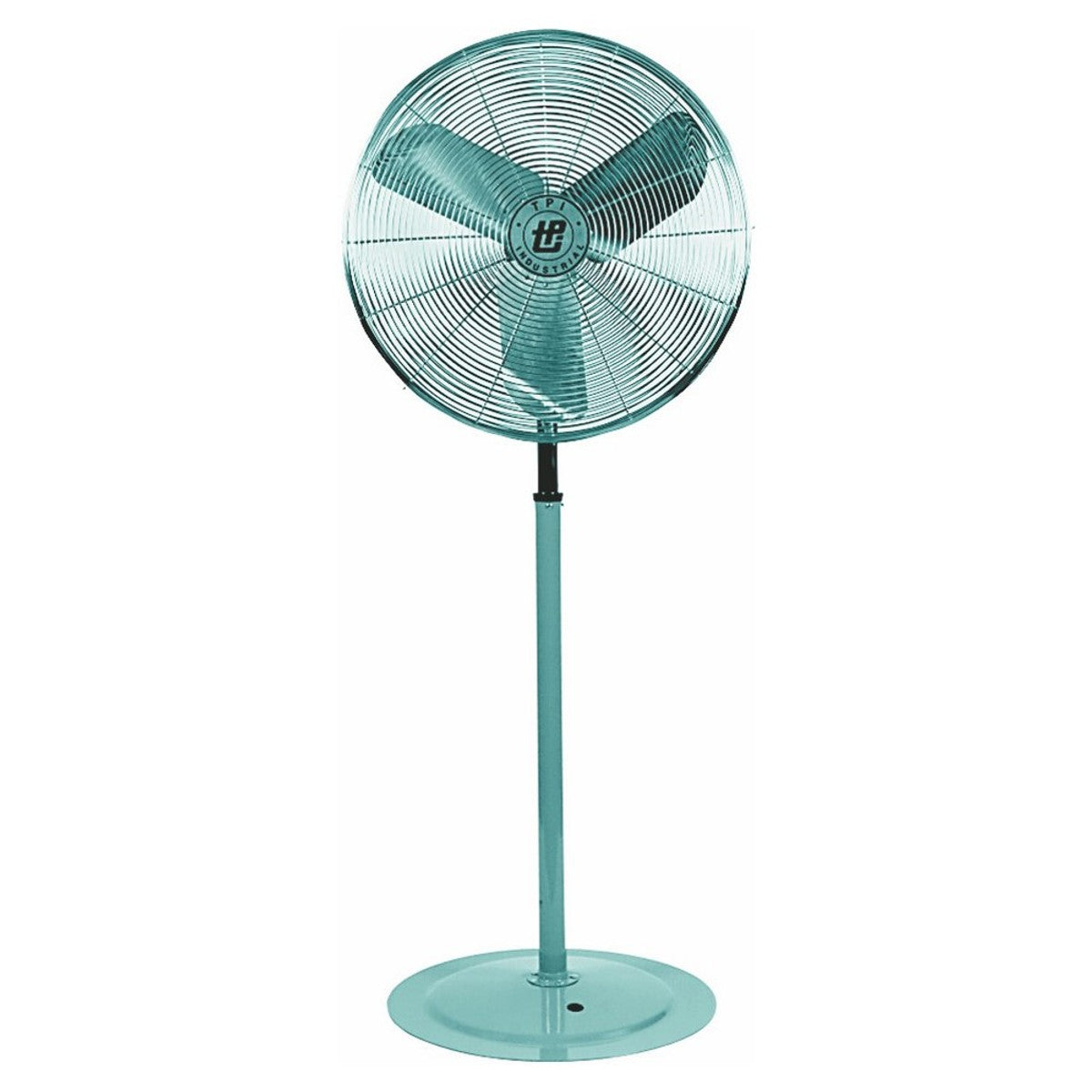

TPI ACU 30-PO 30" Industrial Pedestal Fan, 1/4 HP, 120V, Unassembled

Product Description

TPI® Unassembled Air Circulator, Standard Oscillating, 30 in Blade, 4300 cfm High/3800 cfm Low, 1100 rpm High/800 rpm Low, 1/4 hp, 120 V, 2.7 A, 2 Speed, Pull Chain Switch Control, Paddle Blade, Aluminum Blade, Split Capacitor Motor, Steel Housing, Surface Mount, 12 ft SJT Cord, 33-1/2 in Dia x 14-1/2 in D, Domestic



APPLICATION

Indoor-Industrial and Commercial



FEATURES

• SJT type 3 conductor, 12 ft L cord
• Steel hub/spider aluminum paddle blades
• Coated steel guards
• Motor, blades, guard, and mount are packed and shipped in a single UPS-able carton
• 1-Phase, ball bearing, totally enclosed, permanent split capacitor and permanently lubricated motor
• NO 48 frame motor
• 1/2 in Dia shaft motor
• Motor drive
• Gray color
• Oscillating model oscillates in a 90 deg arc or can be locked in a fixed position



SPECIFICATIONS

Amperage Rating:	2.7 A
Blade Material:	Aluminum
Blade Size:	30 in
Blade Type:	Paddle
Control Type:	Pull Chain Switch
Cord Type:	12 ft SJT
Dimensions:	33-1/2 in Dia x 14-1/2 in D
Domestic/Import:	Domestic
Flow Rate:	4300 cfm High/3800 cfm Low
Housing Material:	Steel
Motor Type:	Split Capacitor
Mounting Type:	Surface
Number of Speeds:	2
Power Rating:	1/4 hp
Speed:	1100 rpm High/800 rpm Low
Type:	Standard Oscillating



STANDARD APPROVALS

cETLus Listed, OSHA Approved
